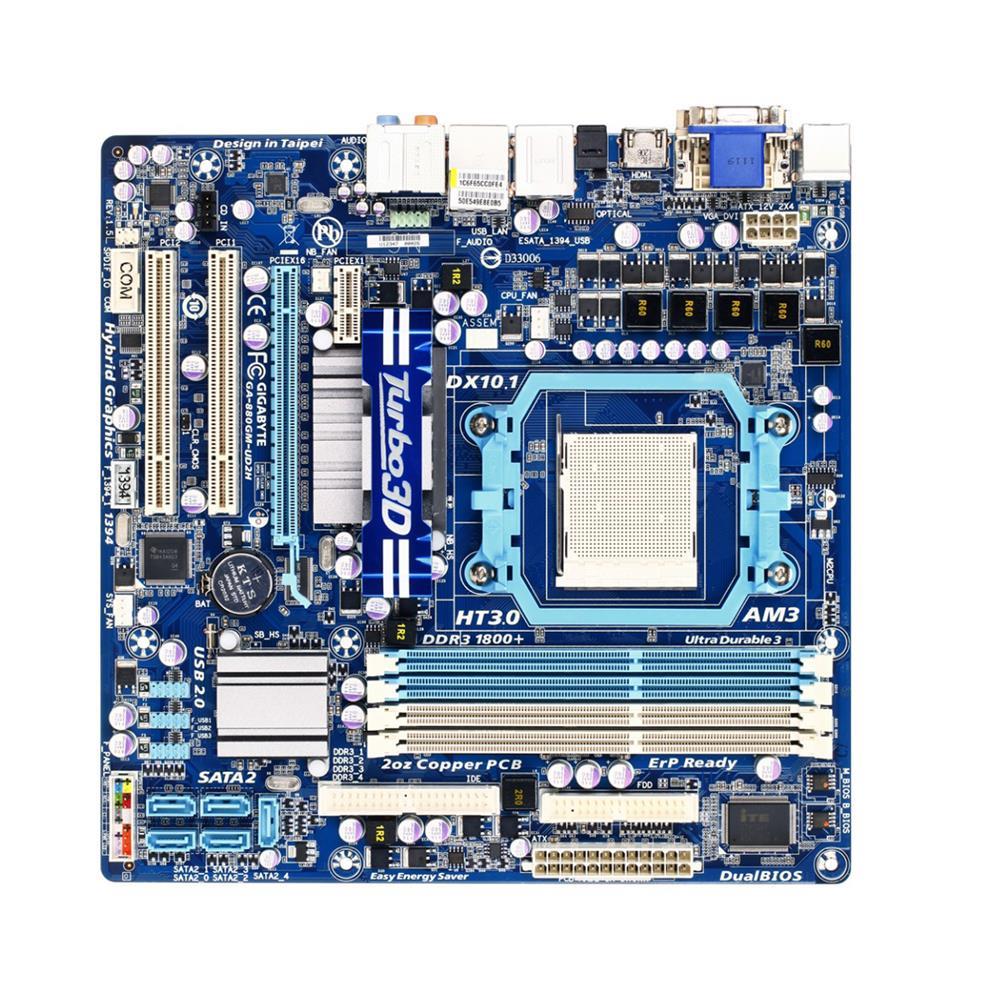

GA-880GM-UD2H-A1 Gigabyte Socket AM3+ AMD 880G/ SB710 Chipset AMD Phenom II/ Athlon II Processors Support DDR3 4x DIMM 5x SATA 3.0Gb/s Micro-ATX Motherboard (Refurbished)
GA-880GM-UD2H-A1 Gigabyte Socket AM3+ AMD 880G/ SB710 Chipset AMD Phenom II/ Athlon II Processors Support DDR3 4x DIMM 5x SATA 3.0Gb/s Micro-ATX Motherboard (Refurbished)

GA-880GM-UD2H-A1 Gigabyte Socket AM3+ AMD 880G/ SB710 Chipset AMD Phenom II/ Athlon II Processors Support DDR3 4x DIMM 5x SATA 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

GA-880GM-UD2H-A1

$191.84 $274.05 You Save: $82.21 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of GA-880GM-UD2H-A1? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for GA-880GM-UD2H-A1

Model
Manufacturer Gigabyte Tech
Manufacturer Part # GA-880GM-UD2H-A1
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type Socket AM3
Supported CPU(s) AMD Athlon II Processor
 AMD Phenom II Processor
Chipset AMD 880G
South Bridge Chipset AMD SB710
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-6400 (DDR3-800)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16 GB
Expansion Slots PCI-E x1
 PCI-E x16
Storage Controller SATA 3.0 Gbps
Audio Controller Realtek ALC892
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x floppy disk drive connector
  • 1 x IDE connector
  • 5 x SATA 3Gb/s connectors
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x CD In connector
  • 1 x S/PDIF In/Out header
  • 3 x USB 2.0/1.1 headers
  • 1 x IEEE 1394a header
  • 1 x serial port header
  • 1 x clearing CMOS jumper

    • Back Panel Connectors
  • 1 x PS/2 keyboard port or PS/2 mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port (Note 3)(Note 4)
  • 1 x HDMI port (Note 4)
  • 1 x optical S/PDIF Out connector
  • 1 x eSATA 3Gb/s port
  • 1 x IEEE 1394a port
  • 6 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    		•
