General Information | |

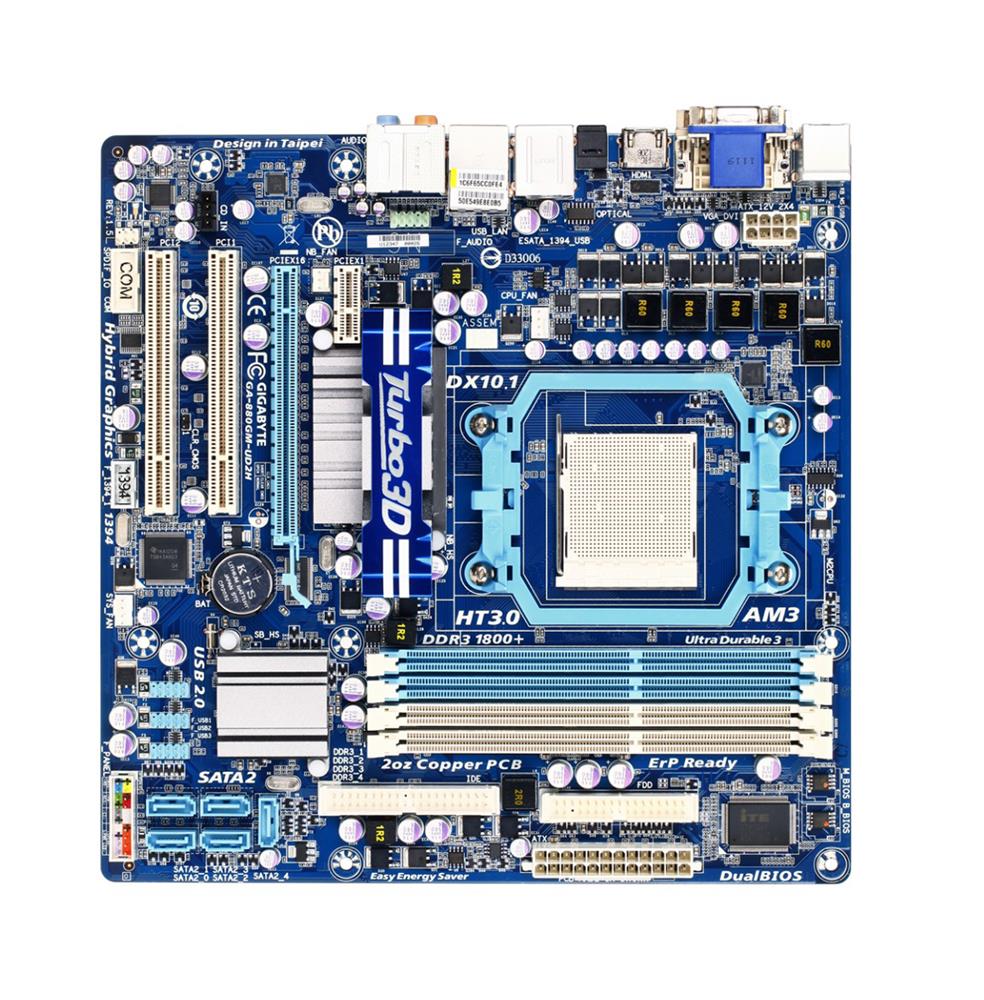

Manufacturer Part Number | GA-880GM-UD2H |
Brand Name | Gigabyte |
Product Type | Desktop Motherboard |
Processor & Chipset | |
Chipset Manufacturer | AMD |
Total Processor Supported | 1 |
Processor Socket | Socket AM3 PGA-941 |
Processor Supported | Sempron |
Memory | |
Number of Memory Slots | 4 |
Maximum Memory | 16 GB |
Memory Speed Supported |
1.33 GHz 1.07 GHz 800 MHz |
Memory Technology | DDR3 SDRAM |
I/O Controller | |
Controller Type |
Serial ATA/300 Ultra ATA/133 (ATA-7) |
RAID Supported | Yes |
RAID Levels |
0 1 0+1 JBOD |
Video | |
Onboard Video | On-board Video Chipset |
Graphics Controller Manufacturer | ATI |
Graphics Controller Model | Radeon HD 4250 |
Audio | |
Audio Channels | 7.1 |
Network & Communication | |
Gigabit Ethernet | Yes |
I/O Expansions | |
Number of Total Expansion Slots | 3 |
Total Number of PCI Express Slots | 2 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 1 |
Interfaces/Ports | |
Total Number of USB Ports | 6 |
VGA | Yes |
HDMI | Yes |
Onboard Interfaces | |
Number of SATA Interfaces | 6 |
Total Number of Onboard USB Ports | 6 |
Physical Characteristics | |
Form Factor | Micro ATX |
Width | 9.6" |
Depth | 9.6" |
