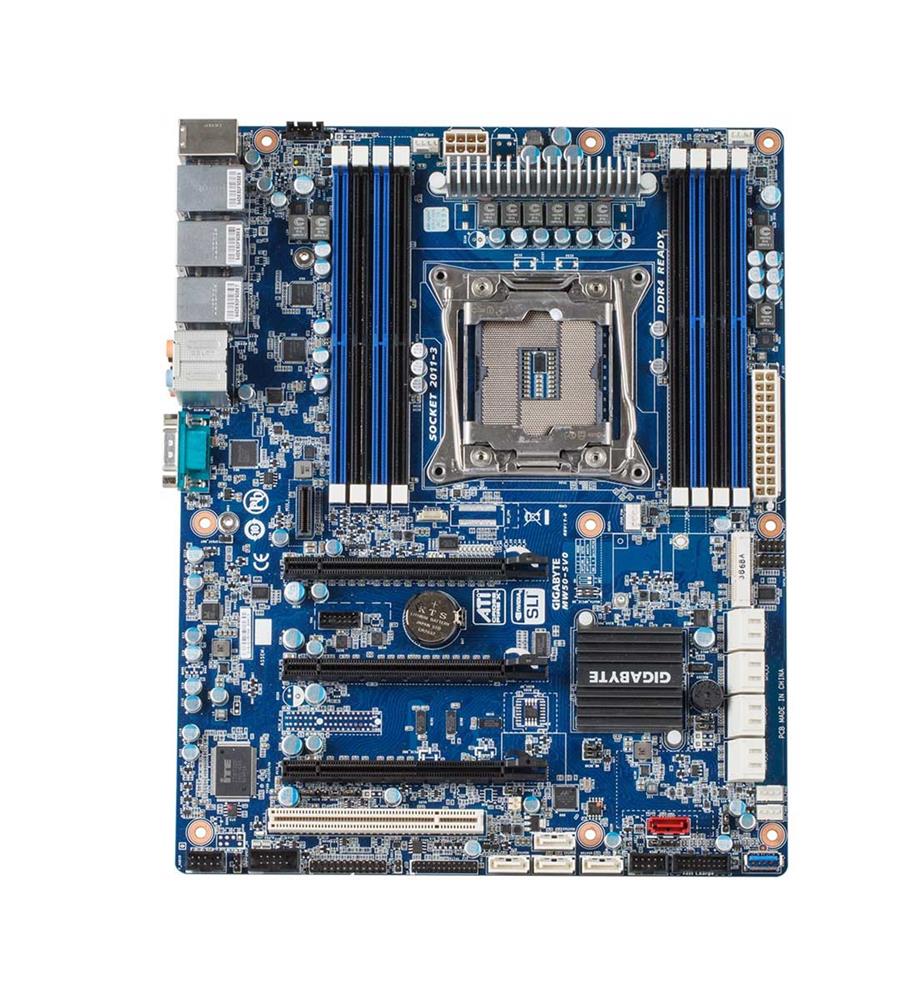

MW50-SV0 Gigabyte Socket LGA 2011-3 Intel C612 Chipset Xeon E2600 V3 /E5-1600 V3 /E5-2600 V4 /E5-1600 V4 Processors Support DDR4 8x DIMM 8x SATA3 6.0Gb/s ATX Server Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
MW50-SV0
Global Part Number (GPN):
1484521224
Looking for a large quantity of MW50-SV0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for MW50-SV0
| General Information | |
| Manufacturer Part Number | MW50-SV0 |
| Brand Name | Gigabyte |
| Product Type | Workstation Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA 2011-v3 |
| Processor Supported |
Xeon Core i7 |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor |
DIMM RDIMM LRDIMM |
| Maximum Memory | 64 GB |
| Memory Speed Supported |
2.13 GHz 1.87 GHz 1.60 GHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/600 mSATA |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 10 |
| Video | |
| Onboard Video | No |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 5 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 4 |
| S/PDIF | Yes |
| VGA | No |
| Onboard Interfaces | |
| Number of SATA Interfaces | 15 |
| Number of mSATA Interfaces | 1 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 3.0 Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
WEEE China RoHS |
| Country of Origin | China |
Request for Quote: MW50-SV0
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no MW50-SV0. Or Request a Quote below:
