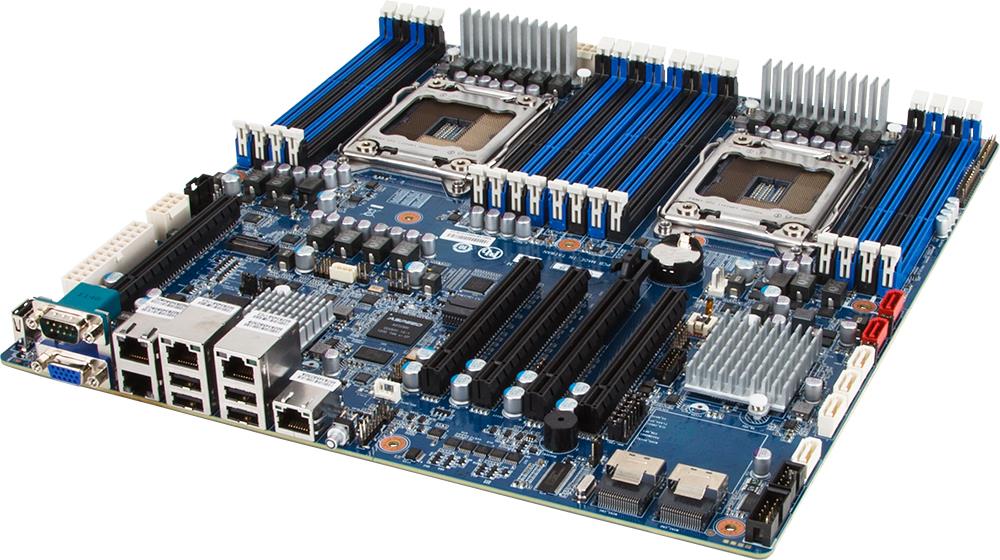

GA-7PESH4 Gigabyte Dual Socket LGA 2011 Intel C602 Chipset Xeon E5-2600 v2/ E5-1600 v2/ E5-2600/ E5-1600 Processors Support 16x DIMM 4x SATA 3.0Gb/s Extended ATX/ SSI EEB Motherboard (Refurbished)
Mfg Part No:
Global Part Number (GPN):
GA-7PESH4
Global Part Number (GPN):
1484469567
Looking for a large quantity of GA-7PESH4? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for GA-7PESH4
| General Information | |
| Manufacturer Part Number | GA-7PESH4 |
| Brand Name | Gigabyte |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported |
Xeon Core i7 |
| Memory | |
| Number of Memory Slots | 16 |
| Memory Form Factor |
RDIMM UDIMM |
| Maximum Memory | 32 GB |
| Memory Speed Supported |
1.87 GHz 1.60 GHz 1.33 GHz 1.07 GHz |
| Memory Technology | DDR3 SDRAM |
| I/O Controller | |
| Controller Type |
Serial ATA/600 Serial ATA/300 3Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels |
0 1 5 1+0 |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2300 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x16 Slots | 5 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| VGA | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of SAS Interfaces | 8 |
| Total Number of Onboard USB Ports | 2 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 13" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
WEEE China RoHS |
