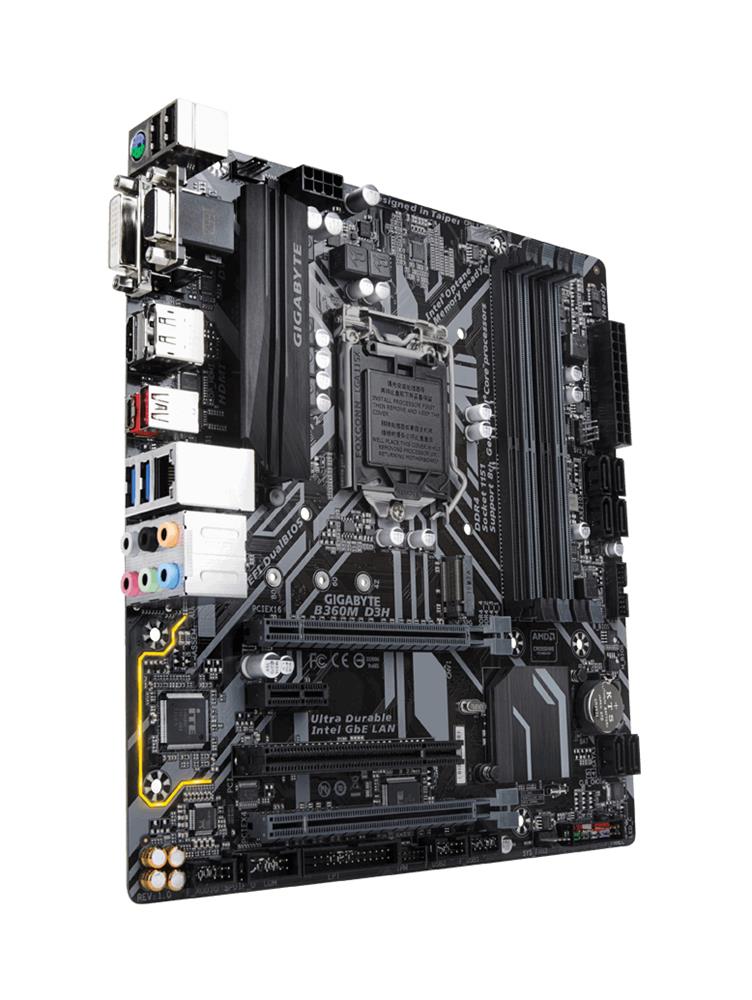

B360M D3H GSM Gigabyte Socket LGA 1151 Intel B360 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
B360M D3H GSM Gigabyte Socket LGA 1151 Intel B360 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

B360M D3H GSM Gigabyte Socket LGA 1151 Intel B360 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

B360M D3H GSM

Icon Global Part Number (GPN):

1490929356

$252.50 $561.10 You Save: $308.60 (55% Special Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of B360M D3H GSM? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for B360M D3H GSM

Model
Manufacturer Gigabyte Tech
Manufacturer Part # B360M D3H GSM
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Chipset Intel B360
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-21333 (DDR4-2666)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E x16
 PCI-E x4
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Audio-In
 Audio-Out
 D-Sub
 DVI-D
 Parallel
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 Serial
 USB 1.1
 USB 2.0
 USB 3.1
Connectors/Ports Details Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x RGB LED strip header
  • 1 x M.2 Socket 3 connector
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.1 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x parallel port header
  • 1 x Clear CMOS jumper

    • Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  • 1 x USB 3.1 Gen 2 Type-A port (red)
  • 2 x USB 3.1 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 6 x audio jacks
    		•
    Request for Quote:  B360M D3H GSM

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no B360M D3H GSM. Or Request a Quote below:



    General Information

  • B360M D3H GSM Gigabyte Socket LGA 1151 Intel B360 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
