Model | |

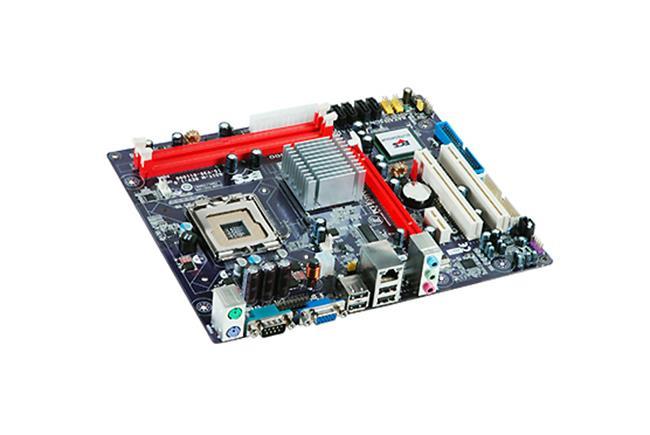

Manufacturer | ECS Elite |
Manufacturer Part # | G31T-M |
Performance | |
Product Type | System Board |
Form Factor | Micro ATX |
CPU Socket Type | LGA 775 |
Supported CPU(s) |
Intel Celeron Processor Intel Core2 Duo Desktop Processor Intel Core2 Quad Processor Intel Pentium Dual-Core Processor |
Chipset | Intel G31 Express |
Number of Memory Slot(s) | 2 |
Number of Memory Channel(s) | 2 |
Supported Memory Standard(s) |
PC2-5400 (DDR2-667) PC2-6400 (DDR2-800) |
Maximum Installed Memory | 4 GB |
Expansion Slots |
PCI PCI-E x1 PCI-E x16 |
Storage Controller | SATA 3.0 Gbps |
On-Board Video Controller | ATI Radeon 3000 Graphics |
Shared Video Memory | 384 MB |
Network | Gigabit Ethernet |
Connectors/Ports |
24-pin ATX Power Connector COM PS/2 PS/2 Keyboard PS/2 Mouse RJ-45 Serial VGA |
Connectors/Ports Details | Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x VGA port 1 x Serial port (COM1) 1 x RJ45 LAN connector 1 x Audio port Internal I/O Connectors & Headers 1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX 12V connector 1 x FDD connector supports one 360K~2.88MB FDD 4 x Serial ATA connectors 2 x USB 2.0 headers support additional 4 USB 2.0 Ports 1 x Clear CMOS header 1 x Front panel header 1 x LPT1 header 1 x Front panel audio header 1 x CD in header 1 x Speaker header 1 x SPDIF out header CPUFAN/SYSFAN connectors |
