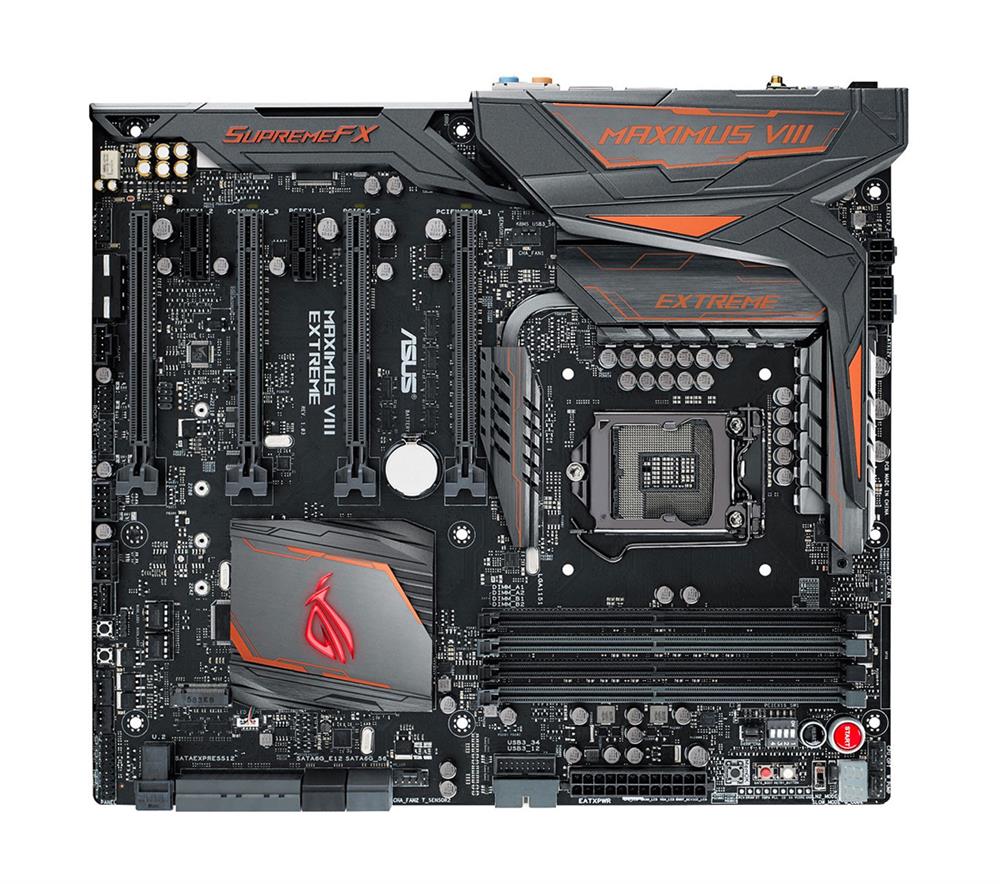

Z170MX07 ASUS MAXIMUS VIII EXTREME Socket LGA1151 Intel Z170 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Extended-ATX Motherboard (Refurbished)

Mfg Part No:

Z170MX07

Global Part Number (GPN):

1485721684

$458.44 $1,018.75 You Save: $560.31 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of Z170MX07? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for Z170MX07

Model
Manufacturer	ASUS
Manufacturer Part #	Z170MX07
Performance
Product Type	System Board
Form Factor	E-ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Chipset	Intel Z170
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400) PC4-21333 (DDR4-2666) PC4-25600 (DDR4-3200)
Maximum Installed Memory	64 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x1 PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Audio-Out HDMI PS/2 PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (black)USB Type-CTM 3 x USB 3.1 Gen 2 (red)Type-A 4 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback® Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS) Internal I/O Ports 1 x U.2 port 1 x AAFP connector 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 4 x Chassis Fan connector(s) (4 -pin) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x Slow Mode switch(es) 9 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x DRAM channel jumper 1 x Power-on button(s) 1 x Reset button(s) 1 x BIOS Switch button(s) 1 x SLI/CFX button (2/3/4-way adjustments) 1 x Water Pump header (4-pin) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button

Request for Quote: Z170MX07

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z170MX07. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.

This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.

Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.

This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.

All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.

Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.

Z170MX07 ASUS MAXIMUS VIII EXTREME Socket LGA1151 Intel Z170 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Extended-ATX Motherboard (Refurbished)
