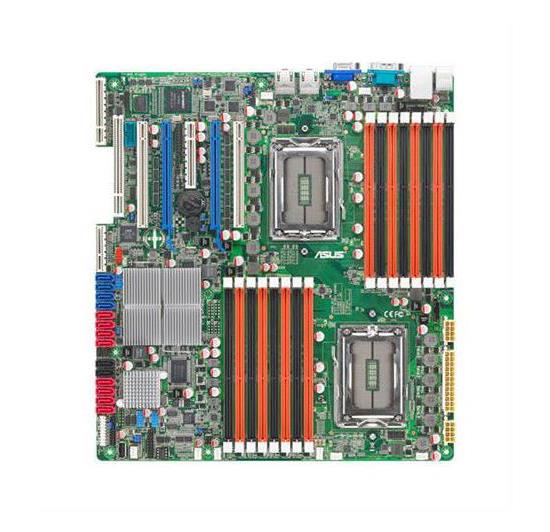

Z8PH-D12 SE/QDR ASUS Dual Socket LGA 1366 Intel 5520 + ICH10R Chipset Xeon X5600/ W5500/ E5600/ E5500/ L5600/ L5500 Series Processors Support DDR3 12x DIMM 4x SATA2 3.0Gb/s ATX Server Motherboard (Refurbished)

Mfg Part No:

Z8PH-D12 SE/QDR

Global Part Number (GPN):

1490885381

$903.64 $2,008.09 You Save: $1,104.45 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of Z8PH-D12 SE/QDR? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for Z8PH-D12 SE/QDR

Model
Manufacturer	ASUS
Manufacturer Part #	Z8PH-D12 SE/QDR
Performance
Product Type	Server Motherboard
Form Factor	ATX
CPU Socket Type	LGA 1366
Supported CPU(s)	Intel Xeon Processor
Supported CPU Technologies	64-bit Hyper-Threading Technology Intel Turbo Boost Technology
Chipset	Intel 5520
South Bridge Chipset	Intel ICH10R
Number of Memory Slot(s)	12
Number of Memory Channel(s)	3
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-6400 (DDR3-800) PC3-8500 (DDR3-1066)
Maximum Installed Memory	16 GB
Expansion Slots	PCI-E 2.0 x16
Storage Controller	SATA 3.0 Gbps
On-Board Video Controller	ASPEED AST2050
Shared Video Memory	8 MB
Network	Gigabit Ethernet
Connectors/Ports	Chassis Fan Connector CPU Fan Connector RJ-45 Serial USB VGA
Connectors/Ports Details	On Board I/O 2 x PSU Power Connector (20-pin 12V power connector; Standard power supply is not supported) 1 x Management Connector , Onboard socket for management card 1 x Internal A Type USB Port 1 x USB connector 4 x Fan Header , 4pin (4pin FAN Only) 2 x SMBus 2 x Front LAN LED Back I/O Ports 1 x External Serial Port 1 x QDR Infiniband 40Gbps with QSFP interface 1 x VGA Port 2 x External USB Port+ 1 Management Port 2 x RJ-45

Request for Quote: Z8PH-D12 SE/QDR

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z8PH-D12 SE/QDR. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.

This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.

Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.

This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.

All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.

Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.

Z8PH-D12 SE/QDR ASUS Dual Socket LGA 1366 Intel 5520 + ICH10R Chipset Xeon X5600/ W5500/ E5600/ E5500/ L5600/ L5500 Series Processors Support DDR3 12x DIMM 4x SATA2 3.0Gb/s ATX Server Motherboard (Refurbished)
