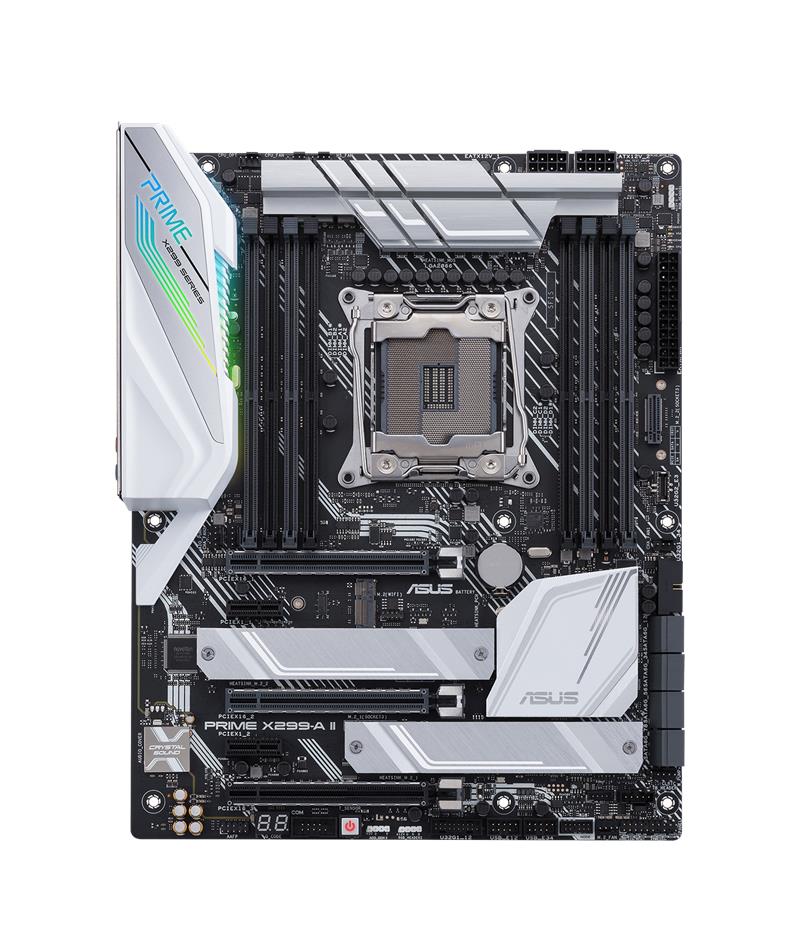

Prime X299-A II ASUS Socket LGA 2066 Intel X299 Chipset Core X-Series Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)
Prime X299-A II ASUS Socket LGA 2066 Intel X299 Chipset Core X-Series Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Prime X299-A II ASUS Socket LGA 2066 Intel X299 Chipset Core X-Series Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

Prime X299-A II

$527.08 $752.97 You Save: $225.89 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of Prime X299-A II? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for Prime X299-A II

Model
Manufacturer ASUS
Manufacturer Part # Prime X299-A II
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 2066
Supported CPU(s) Intel Core X-Series Processor
Chipset Intel X299
Number of Memory Slot(s) 8
Supported Memory Standard(s) PC4-14900 (DDR4-1866)
 PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-21333 (DDR4-2666)
 PC4-23466 (DDR4-2933)
 PC4-25600 (DDR4-3200)
Maximum Installed Memory 256 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
 PCI-E 3.0 x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC-S1220A
Network Gigabit Ethernet
Connectors/Ports 8-pin 12V Power Connector
 Audio-In
 Audio-Out
 Chassis Fan Connector
 COM
 CPU Fan Connector
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
 USB 3.1
Connectors/Ports Details Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x USB BIOS FlashBack™ Button(s)
  • 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)

    • Internal I/O Ports
  • 1 x AAFP connector
  • 2 x Aura RGB Strip Headers
  • 1 x Addressable Gen 2 header(s)
  • 1 x USB 3.2 Gen 1 front panel TypeC™ connector
  • 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 1 x COM port(s) connector(s)
  • 8 x SATA 6Gb/s connector(s)
  • 1 x M.2_FAN connector
  • 1 x VROC_HW_Key
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x W_PUMP+ connector
  • 1 x AIO_PUMP connector
  • 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
  • 1 x 24-pin EATX Power connector(s)
  • 2 x 8-pin EATX 12V Power connectors
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
  • 1 x Thermal sensor connector(s)
  • 1 x Power-on button(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x Node Connector(s)
  • 1 x CPU_OV jumper
  • 1 x Q-Code
    		•
    Request for Quote:  Prime X299-A II

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Prime X299-A II. Or Request a Quote below:



    General Information

  • Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.
  • This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
  • Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
  • This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
  • All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
  • Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
  • Prime X299-A II ASUS Socket LGA 2066 Intel X299 Chipset Core X-Series Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)
