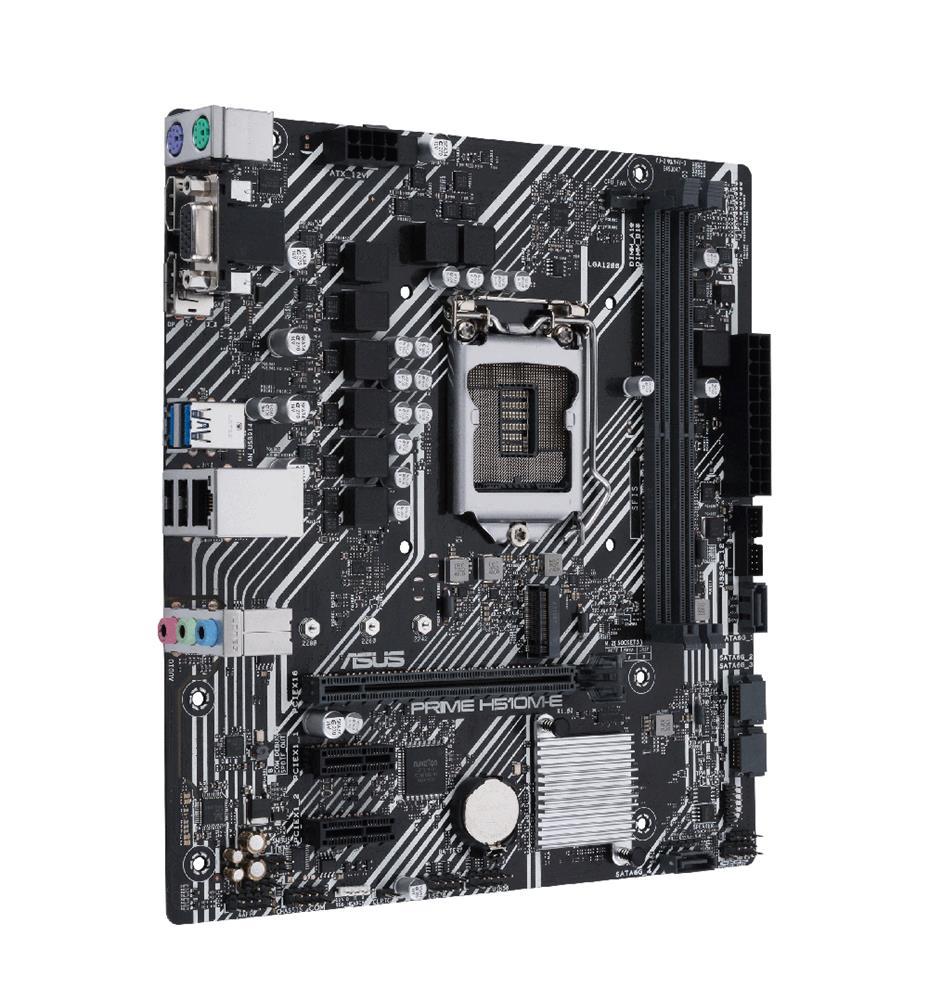

PRIME H510M-E ASUS Socket LGA 1200 Intel H510 Chipset 11th Generation Intel Core 10th Generation Intel Core/ Pentium/ Gold/ Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
PRIME H510M-E ASUS Socket LGA 1200 Intel H510 Chipset 11th Generation Intel Core 10th Generation Intel Core/ Pentium/ Gold/ Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

PRIME H510M-E ASUS Socket LGA 1200 Intel H510 Chipset 11th Generation Intel Core 10th Generation Intel Core/ Pentium/ Gold/ Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

PRIME H510M-E

Icon Global Part Number (GPN):

1497026826

$229.93 $510.95 You Save: $281.02 (55% Special Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of PRIME H510M-E? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for PRIME H510M-E

Model
Manufacturer ASUS
Manufacturer Part # PRIME H510M-E
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1200
Supported CPU(s) Intel Celeron Processor
 Intel Pentium Gold
Chipset Intel H510
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-21333 (DDR4-2666)
 PC4-23466 (DDR4-2933)
 PC4-25600 (DDR4-3200)
Maximum Installed Memory 64 GB
Expansion Slots PCI-E 3.0 x16
 PCI-E 4.0 x16
Storage Controller SATA 6.0 Gbps
Network Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Chassis Fan Connector
 COM
 CPU Fan Connector
 HDMI
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 VGA
Connectors/Ports Details Back Panel I/O Ports
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x HDMI™ port
  • 1 x Intel® I219-V 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard (purple) port
  • 1 x PS/2 Mouse (green) port

    • Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
    		•
    Request for Quote:  PRIME H510M-E

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no PRIME H510M-E. Or Request a Quote below:



    General Information

  • Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.
  • This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
  • Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
  • This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
  • All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
  • Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
  • PRIME H510M-E ASUS Socket LGA 1200 Intel H510 Chipset 11th Generation Intel Core 10th Generation Intel Core/ Pentium/ Gold/ Celeron Processors Support DDR4 2x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
