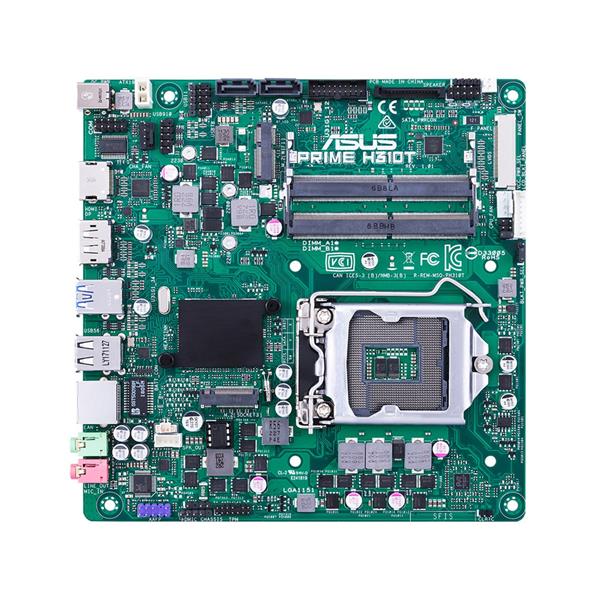

PRIME H310T ASUS Socket LGA 1151 Intel H310 Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 2x SATA 6.0Gb/s Thin Mini-ITX Motherboard (Refurbished)

Mfg Part No:

PRIME H310T

$212.91 $283.88 You Save: $70.97 (25% Winter Discount)
Availability:Available for Order

Looking for a large quantity of PRIME H310T? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for PRIME H310T

Model
Manufacturer ASUS
Manufacturer Part # PRIME H310T
Performance
Product Type System Board
Form Factor Mini-ITX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
Intel Core i3 Processor
Intel Core i5 Processor
Intel Core i7 Processor
Intel Pentium Processor
Chipset Intel H310
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
PC4-19200 (DDR4-2400)
PC4-21333 (DDR4-2666)
Maximum Installed Memory 32 GB
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports Chassis Fan Connector
COM
CPU Fan Connector
DisplayPort
HDMI
USB 2.0
USB 3.1
Connectors/Ports Details Back I/O Ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 1 (blue)
  • 2 x USB 2.0
  • 2 x Audio jack(s)
  • 1 x DC power connector(s)

  • Internal I/O Ports
  • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  • 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe, CNVi/USB mode
  • 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x4 mode)
  • 1 x COM port(s) connector(s)
  • 2 x SATA 6Gb/s connector(s)
  • 1 x SATA power connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Chassis Intrusion connector(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x 2-pin internal DC power connector
  • 1 x Stereo speaker connector
  • 1 x DMIC header
  • 1 x Backlight inverter voltage selection header
  • 1 x FPD brightness header
  • 1 x Panel voltage selection header
  • 1 x Panel off header
  • 1 x LVDS connector(s)
  • 1 x 14-1 pin TPM connector
  • 1 x System panel connector
  • Request for Quote:  PRIME H310T

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no PRIME H310T. Or Request a Quote below:



    General Information

  • Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.
  • This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
  • Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
  • This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
  • All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
  • Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
  • PRIME H310T ASUS Socket LGA 1151 Intel H310 Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 2x SATA 6.0Gb/s Thin Mini-ITX Motherboard (Refurbished)
