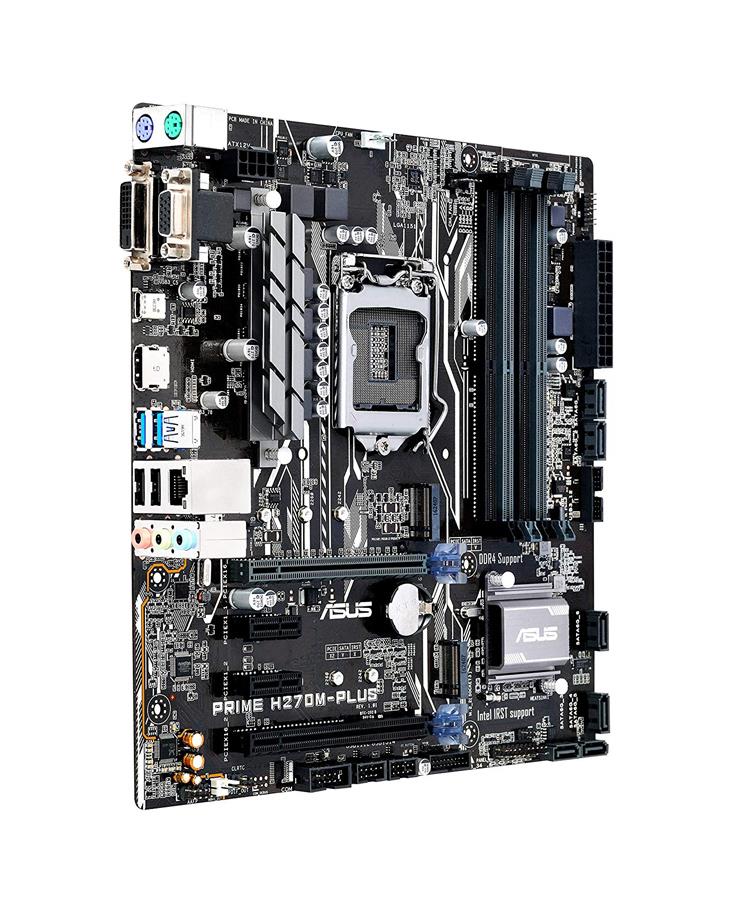

PRIME H270M-PLUS ASUS Socket LGA 1151 Intel H270 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

PRIME H270M-PLUS

$209.10 $298.71 You Save: $89.61 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of PRIME H270M-PLUS? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for PRIME H270M-PLUS

Model
Manufacturer	ASUS
Manufacturer Part #	PRIME H270M-PLUS
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel H270
Number of Memory Slot(s)	4
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400)
Maximum Installed Memory	64 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x1 PCI-E 3.0 x16
Expansion Slots Details	1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1
Storage Controller	SATA 6.0 Gbps
Storage Controller Details	1 x M.2 Socket 31, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 32, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready *3
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out D-Sub DVI-D HDMI PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0
Connectors/Ports Details	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output ) 2 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s)
Other Information
Features	ASUS 5X Protection III ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: 6 Phase digital power design ASUS EPU EPU ASUS Exclusive Features AI Suite 3 Ai Charger ASUS Quiet Thermal Solution Stylish Fanless Design Heat-sink solution & MOS Heatsink ASUS Fan Xpert 4 Core ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Q-Design ASUS Q-Slot ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
