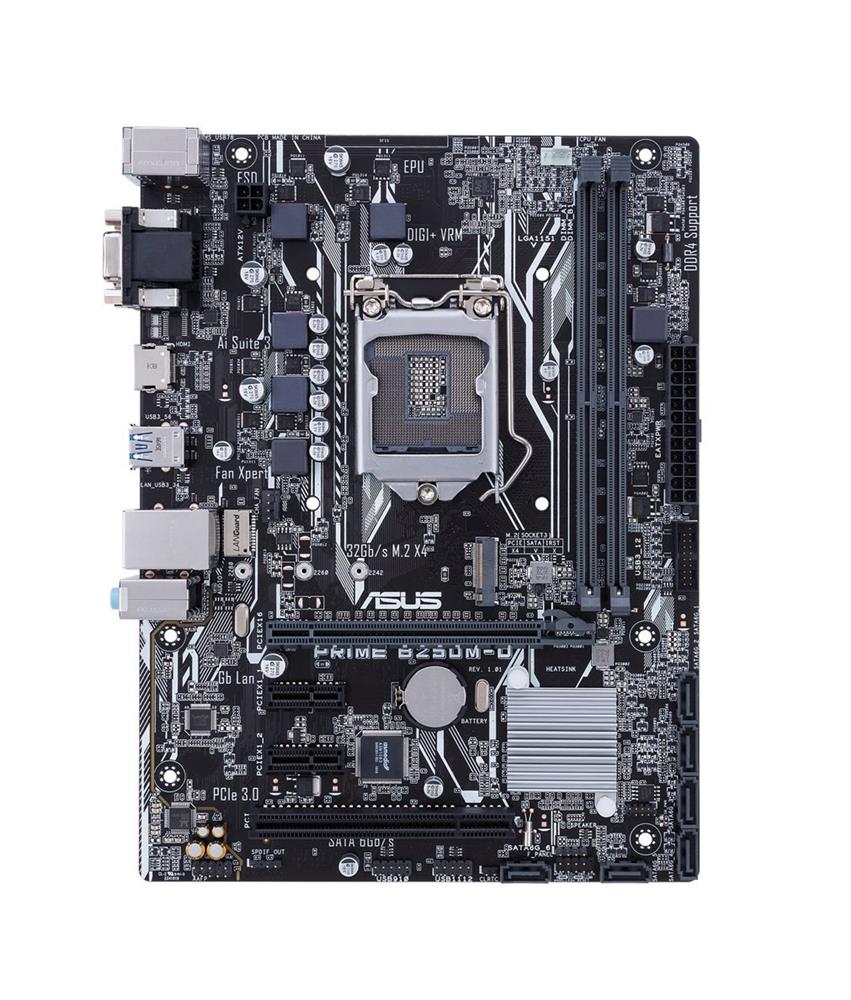

PRIME B250M-D ASUS Socket LGA 1151 Intel B250 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron / Processors Support DDR4 2x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

PRIME B250M-D

Global Part Number (GPN):

1489217741

$458.44 $1,018.75 You Save: $560.31 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of PRIME B250M-D? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for PRIME B250M-D

Model
Manufacturer	ASUS
Manufacturer Part #	PRIME B250M-D
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel B250
Number of Memory Slot(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400)
Maximum Installed Memory	32 GB
Expansion Slots	PCI PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x1 PCI-E 3.0 x16
Expansion Slots Details	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 3.0/2.0 x1 1 x PCI
Storage Controller	SATA 6.0 Gbps
Storage Controller Details	Intel® B250 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1 6 x SATA 6Gb/s port(s), gray,
Audio Controller	Realtek ALC887
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out COM D-Sub HDMI PS/2 RJ-45 USB 3.1
Connectors/Ports Details	1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 Type-A 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) 1 x 8-channel Audio I/O
Other Information
Features	ASUS 5X Protection III ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: 5 Phase digital power design ASUS EPU EPU ASUS Exclusive Features AI Suite 3 Ai Charger ASUS Quiet Thermal Solution Stylish Fanless Design Heat-sink solution ASUS Fan Xpert ASUS EZ DIY ASUS EZ Flash 3 ASUS Q-Design ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
