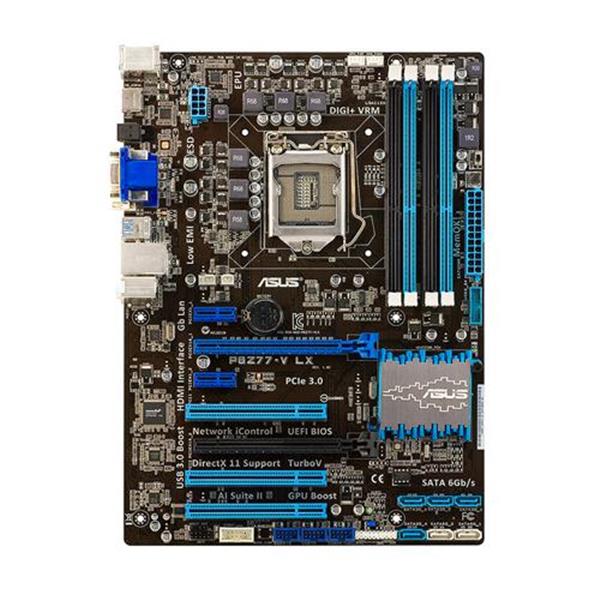

Model | |
Manufacturer | ASUS |
Manufacturer Part # | P8Z77-V-LX |
Performance | |
Product Type | System Board |
Form Factor | ATX |
CPU Socket Type | LGA 1155 |
Supported CPU(s) |
Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor |
Supported CPU Technologies | Intel Turbo Boost Technology |
Chipset | Intel Z77 Express |
Number of Memory Slot(s) | 4 |
Number of Memory Channel(s) | 2 |
Supported Memory Standard(s) |
PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-16000 (DDR3-2000) PC3-19200 (DDR3-2400) |
Maximum Installed Memory | 32GB |
Expansion Slots |
PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x16 |
Expansion Slots Details | |
Storage Controller |
SATA 3.0 Gbps SATA 6.0 Gbps |
Storage Controller Details | |
Shared Video Memory | 1696 MB |
Audio Controller | Realtek ALC887 |
Network | Gigabit Ethernet |
Connectors/Ports |
8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector D-Sub PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 2.0 USB 3.1 |
Connectors/Ports Details | Internal I/O Ports
Back I/O Ports |
