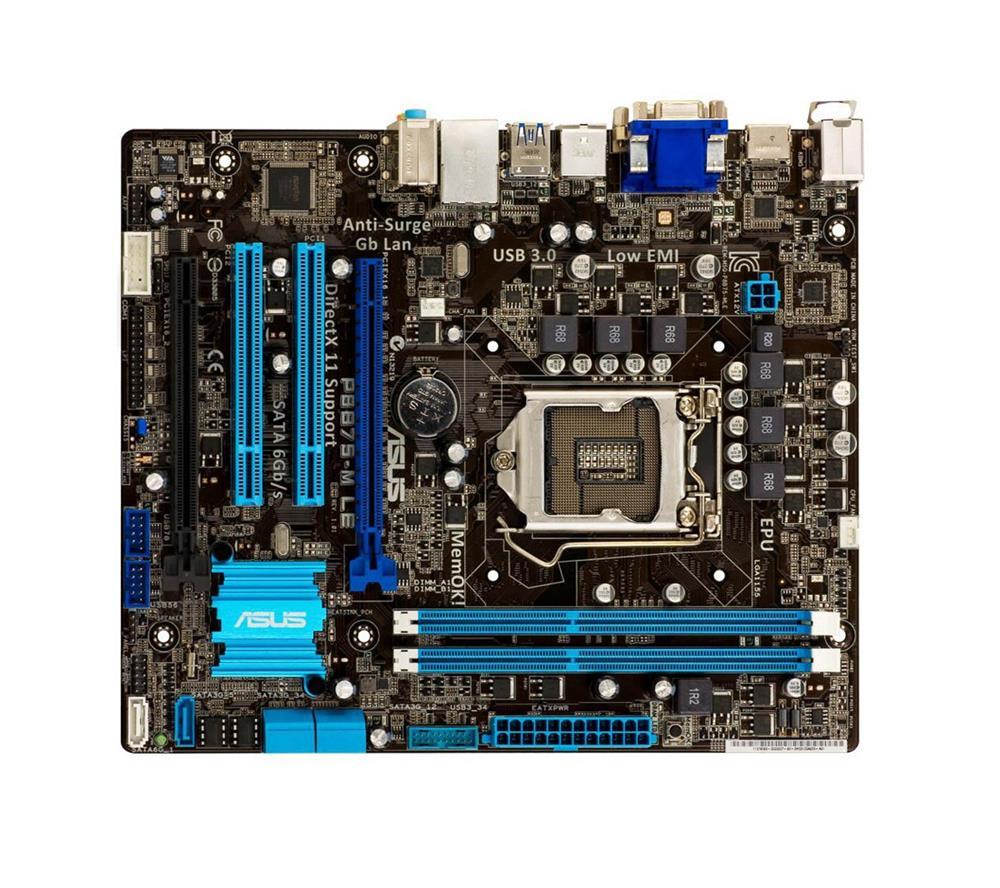

P8B75-MLE ASUS Socket LGA 1155 Intel B75 Chipset Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 5x SATA 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

P8B75-MLE

$182.24 $260.35 You Save: $78.11 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of P8B75-MLE? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for P8B75-MLE

Model
Manufacturer	ASUS
Manufacturer Part #	P8B75-MLE
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1155
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel B75 Express
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-16000 (DDR3-2000) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32GB
Expansion Slots	PCI-E 2.0 x16 PCI-E 2.0 x4 PCI-E 3.0 x16
Expansion Slots Details	1 x PCIe 3.0/2.0 x16 1 x PCIe 2.0 x4 2 x PCI
Storage Controller	SATA 3.0 Gbps SATA 6.0 Gbps
Storage Controller Details	5 x SATA 3Gb/s port(s), blue 1 x SATA 6Gb/s port(s), gray
Audio Controller	VIA VT1708S
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector DVI-D HDMI Parallel PS/2 Keyboard PS/2 Mouse RJ-45 TPM Header USB 2.0
Connectors/Ports Details	Internal I/O Connectors> 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x SATA 6Gb/s connector(s) 5 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x MemOK! button(s) Back I/O Connectors 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 4 x USB 2.0 3 x Audio jack(s)
