Looking for a large quantity of P5KPL-AM? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Model | |

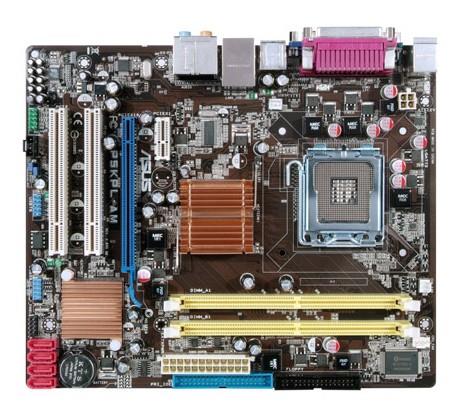

Manufacturer | ASUS |
Manufacturer Part # | P5KPL-AM |
Performance | |
Product Type | System Board |
Form Factor | Micro ATX |
CPU Socket Type | LGA 775 |
Supported CPU(s) |
Intel Celeron Processor Intel Core2 Duo Desktop Processor Intel Core2 Extreme Processor Intel Core2 Quad Processor Intel Pentium 4 Processor Intel Pentium D Processor |
FSB Speed (Maximum) | 1600 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | Intel G31 Express |
South Bridge Chipset | Intel ICH7 |
Number of Memory Slot(s) | 2 |
Number of Memory Channel(s) | 2 |
Supported Memory Standard(s) |
PC2-5300 (DDR2-667) PC2-6400 (DDR2-800) PC2-8600 (DDR2-1066) |
Maximum Installed Memory | 4 GB |
Expansion Slots |
PCI-E x1 PCI-E x16 |
Expansion Slots Details | 1 x PCIe x16 1 x PCIe x1 2 x PCI |
Storage Controller | SATA 3.0 Gbps |
Audio Controller | VIA VT1708B |
Network | Gigabit Ethernet |
Connectors/Ports |
Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 USB 1.1 USB 2.0 |
Connectors/Ports Details | Back Panel I/O Ports
Internal I/O Connectors |
Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no P5KPL-AM. Or Request a Quote below:
