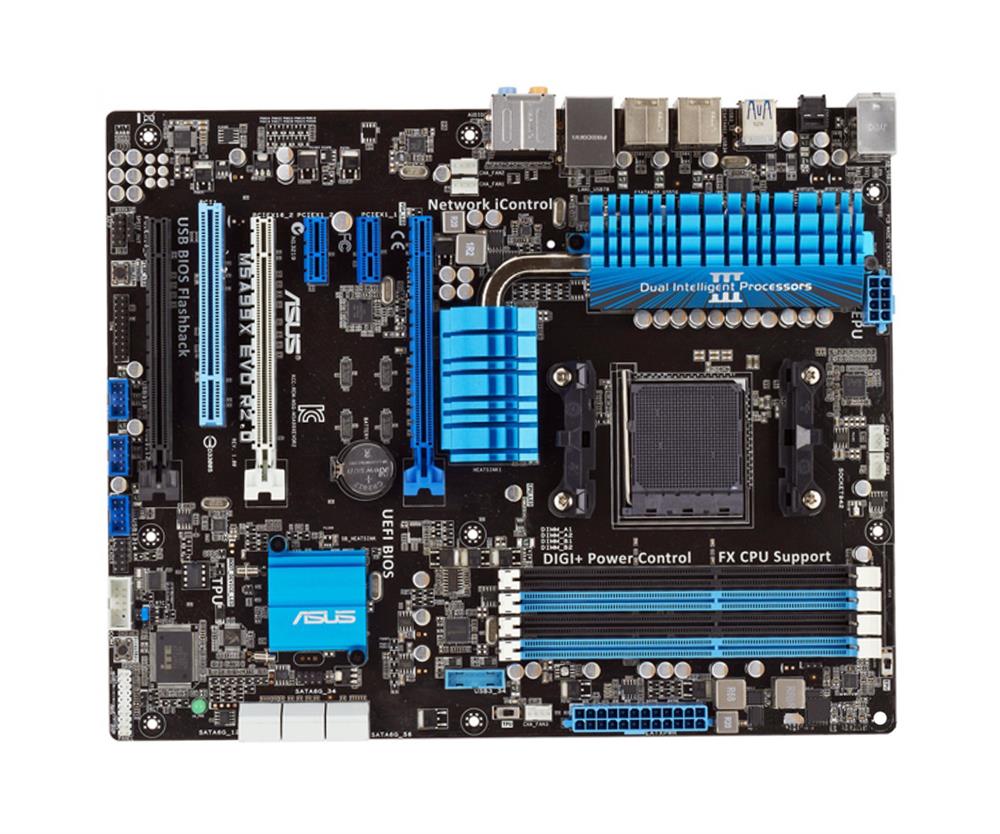

MBM5A99E2 ASUS Socket AM3+ AMD 990X + SB950 Chipset AMD FX/ AMD Phenom II/ AMD Athlon II/ AMD Sempron 100 Series Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

MBM5A99E2

Global Part Number (GPN):

1482037724

$377.89 $839.76 You Save: $461.87 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of MBM5A99E2? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for MBM5A99E2

Model
Manufacturer	ASUS
Manufacturer Part #	MBM5A99E2
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket AM3+
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor AMD Sempron Processor
Supported CPU Technologies	Cool n Quiet Technology
South Bridge Chipset	AMD SB950
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32GB
Expansion Slots	PCI-E 2.0 x16
Expansion Slots Details	2 x PCIe 2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 1 x PCI
Storage Controller	SATA 3.0 Gbps SATA 6.0 Gbps
Storage Controller Details	AMD SB950 controller 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 JMicron JMB362 controller 2 x SATA 3Gb/s port(s), black 1 x Power eSATA 3Gb/s port(s), green 1 x eSATA 3Gb/s port(s), red
Audio Controller	Realtek ALC892
Network	Gigabit Ethernet
Connectors/Ports	8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector PS/2 PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Internal I/O Connector 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, blue) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (1 x 4 -pin, 2 x 3 -pin) 1 x Power Fan connector(s) (1 x 3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Clear CMOS jumper(s) Back I/O Connectors 1 x PS/2 keyboard/mouse combo port(s) 1 x eSATA 3Gb/s 1 x Power eSATA 3Gb/s 1 x IEEE 1394a 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 8 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s)
