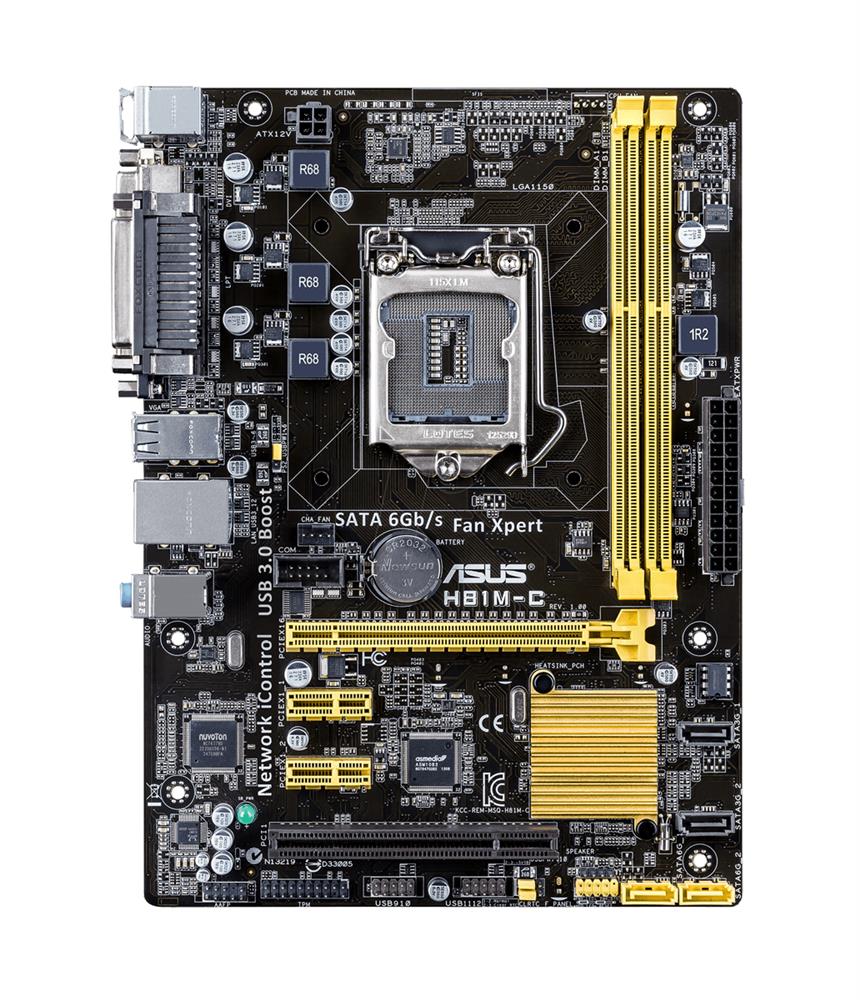

MBH81MCSO ASUS H81m-C/CSM/SI Socket LGA 1150 Intel H81 Express Chipset Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 2x DIMM 2x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

MBH81MCSO

Global Part Number (GPN):

1482625328

$319.96 $711.02 You Save: $391.06 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of MBH81MCSO? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for MBH81MCSO

Model
Manufacturer	ASUS
Manufacturer Part #	MBH81MCSO
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1150
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Chipset	Intel H81
Number of Memory Slot(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-8500 (DDR3-1066)
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16
Storage Controller	SATA 3.0 Gbps SATA 6.0 Gbps
Shared Video Memory	1024 MB
Audio Controller	Realtek ALC887-VD
Network	Ethernet Fast Ethernet Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Chassis Fan Connector CPU Fan Connector DVI-D PS/2 Keyboard PS/2 Mouse TPM Header USB 2.0 USB 3.0
Connectors/Ports Details	Internal I/O Ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 4 x USB 2.0 1 x Parallel port(s) 1 x Audio jack(s)

Request for Quote: MBH81MCSO

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no MBH81MCSO. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.

This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.

Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.

This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.

All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.

Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.

MBH81MCSO ASUS H81m-C/CSM/SI Socket LGA 1150 Intel H81 Express Chipset Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 2x DIMM 2x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
