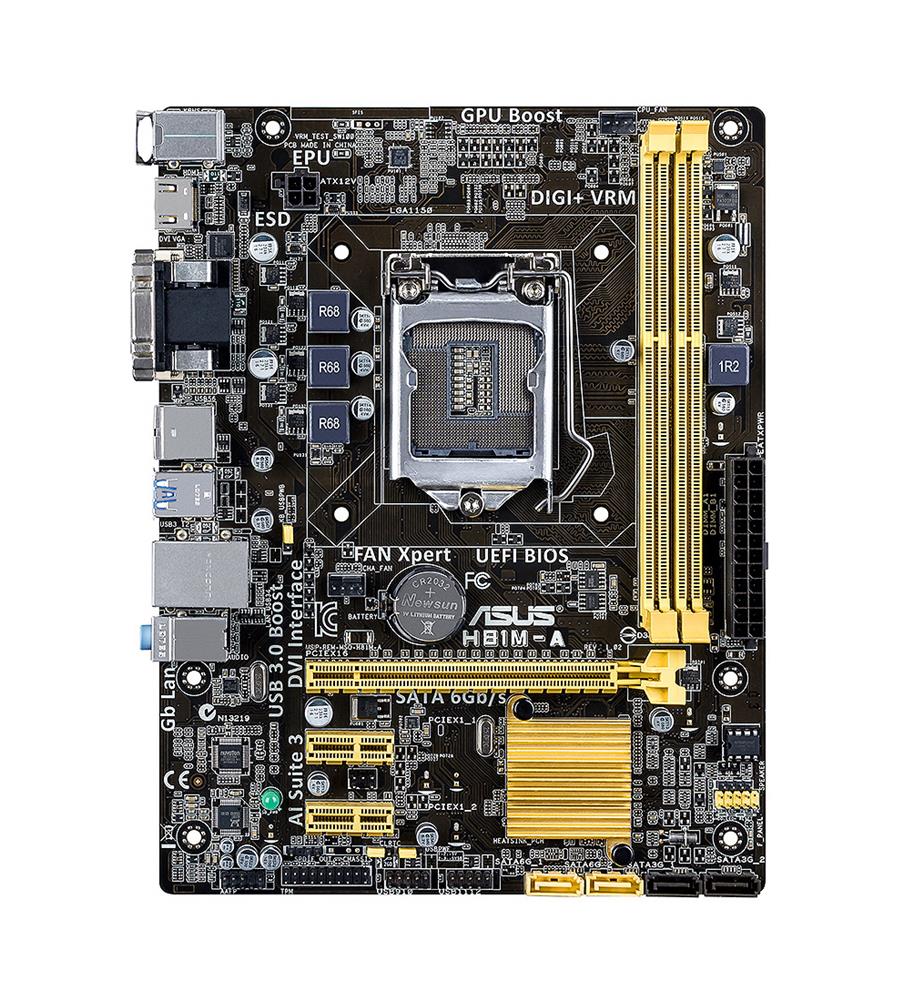

MBH81MA ASUS H81M-A Socket LGA 1150 Intel H81 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 2x DIMM 2x SATA 6.0Gb/s uATX Motherboard (Refurbished)

Mfg Part No:

MBH81MA

$157.16 $209.55 You Save: $52.39 (25% Autumn Discount)
Availability:Available for Order

Looking for a large quantity of MBH81MA? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for MBH81MA

Model
Manufacturer ASUS
Manufacturer Part # MBH81MA
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1150
Supported CPU(s) Intel Celeron Processor
Intel Core i3 Processor
Intel Core i5 Processor
Intel Core i7 Processor
Intel Pentium Processor
Chipset Intel H81
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 16 GB
Expansion Slots PCI-E 2.0 x1
PCI-E x16
Storage Controller SATA 3.0 Gbps
SATA 6.0 Gbps
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports Audio-In
Audio-Out
Chassis Fan Connector
CPU Fan Connector
DVI
PS/2 Keyboard
PS/2 Mouse
RJ-45
USB 2.0
Connectors/Ports Details Back I/O Ports
  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 1 x DVI
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 1 (blue)
  • 4 x USB 2.0
  • 3 x Audio jack(s)

  • Internal I/O Ports
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x TPM connector(s)
  • 2 x SATA 6Gb/s connector(s)
  • 2 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 1 x Chassis Fan connector(s) (1 x 4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Internal speaker connector(s)
  • 1 x Clear CMOS jumper(s)
