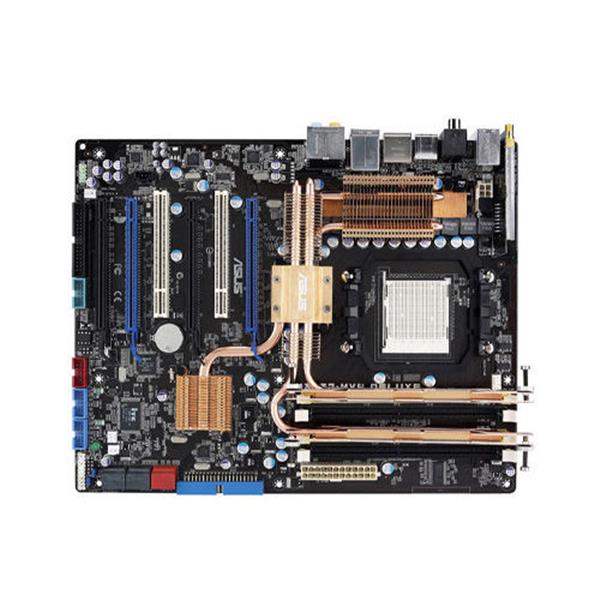

M3A32-MVPDLX ASUS Socket AM2+ AMD 790FX/SB600 Chipset AMD Phenom FX/ Phenom X4/ Phenom X2/ Athlon X2/ Sempron Processors Support DDR2 4x DIMM 4x SATA 3.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

M3A32-MVPDLX

Global Part Number (GPN):

1465412740

$383.46 $852.13 You Save: $468.67 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of M3A32-MVPDLX? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for M3A32-MVPDLX

Model
Manufacturer	ASUS
Manufacturer Part #	M3A32-MVPDLX
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket FM2+
Supported CPU(s)	AMD Phenom FX Processor AMD Phenom X4 Processor AMD Sempron Processor
Chipset	AMD 790FX
South Bridge Chipset	AMD SB600
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC2-4300 (DDR2-533) PC2-5300 (DDR2-667) PC2-6400 (DDR2-800) PC2-8500 (DDR2-1066)
Maximum Installed Memory	8 GB
Expansion Slots Details	4 x PCIe x16 with ATI CrossFireX™ support, @ dual x16; tripple x16 / x8 / x8; or quad x8 modes 2 x PCI 2.2 Support PCIe 2.0 / 1.0 Architecture
Storage Controller	SATA 3.0 Gbps
Audio Controller	Analog Devices AD1988B
Network	Gigabit Ethernet
Connectors/Ports	Chassis Fan Connector CPU Fan Connector PS/2 Keyboard USB 1.1 USB 2.0
Connectors/Ports Details	Back Panel I/O Ports 1 x PS/2 Keyboard 1 x External SATA 1 x S/PDIF Out 1 x IEEE 1394a 1 x LAN(RJ45) port 6 x USB 2.0/1.1 8 -Channel Audio I/O Internal I/O Connectors 2 x USB connectors support additional 4 USB ports 1 x Floppy disk drive connector 1 x IDE connector 6 x SATA connectors 1 x IEEE 1394a connector 1 x CPU Fan connector 2 x Chassis Fan connector 1 x Power Fan connector 1 x S/PDIF Out connector 1 x1 8-pin ATX 12V Power connector 24 Power connector Front panel audio connector COM connector Chassis Intrusion connector CD/AUX audio in System Panel
