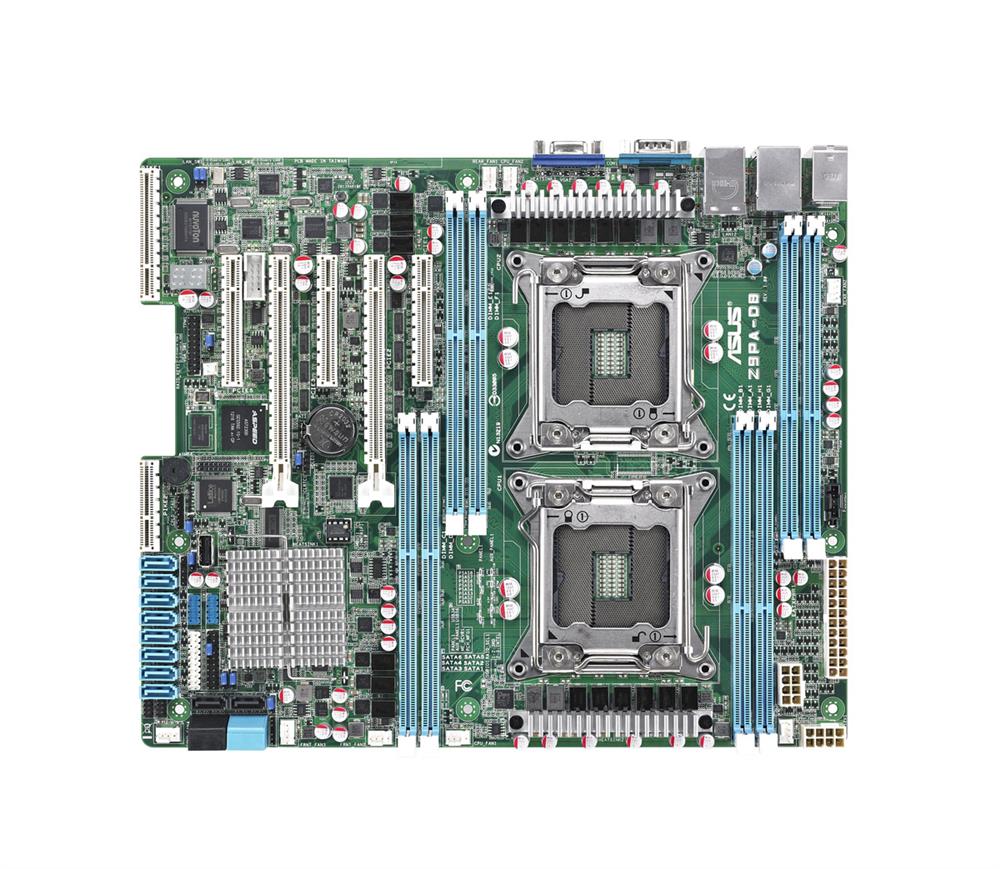

Z9PA-D8 ASUS Socket LGA 2011 Intel C602 Chipset Xeon E5-2600/ E5-2600 v2 Processors Support DDR3 8x DIMM 4x SATA2 3.0Gb/s ATX Server Motherboard (Refurbished)

Mfg Part No:

Z9PA-D8

Global Part Number (GPN):

1471437558

$477.73 $1,061.63 You Save: $583.90 (55% Special Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of Z9PA-D8? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for Z9PA-D8

Model
Manufacturer	ASUS
Manufacturer Part #	Z9PA-D8
Performance
Product Type	Server Motherboard
Form Factor	ATX
CPU Socket Type	LGA 2011
Supported CPU(s)	Intel Xeon Processor
Supported CPU Technologies	64-bit Hyper-Threading Technology Intel Turbo Boost Technology Intel Virtualization Technology
Chipset	Intel C602
Number of Memory Slot(s)	8
Number of Memory Channel(s)	4
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066)
Maximum Installed Memory	256GB RDIMM GB
Expansion Slots	PCI-E x16 PCI-E x8
Expansion Slots Details	PCI-E x8 (Gen2 X4 Link) PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied PCI-E x8 (Gen3 X8 Link) PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied PCI-E x8 (Gen3 X8 Link), MIO supported PIKE Slot for Stroage expansion *2
Storage Controller	SAS 6.0 Gbps SATA 3.0 Gbps SATA 6.0 Gbps
Storage Controller Details	SATA Controller 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports SAS Controller ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 9230 4-port SATA 6G RAID card (Optional)
On-Board Video Controller	ASPEED AST2300
Shared Video Memory	16 MB
Network	MGMT Port
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector CPU Fan Connector PS/2 PS/2 Keyboard PS/2 Mouse RJ-45 Serial USB USB 2.0 USB 3.1
Connectors/Ports Details	On Board I/O Connectors 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)3 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)4 1 x USB connector*5 2 x USB pin header , Up to 4 Devices 8 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x Management Connector , Onboard socket for management card Back I/O Connectors 1 x External Serial Port 4 x External USB Port (2 x USB 3.1 Gen 1, 2 x USB 2.0) 1 x VGA Port 2 x RJ-45 + 1 x Mgmt LAN 1 x PS/2 KB/Mouse
