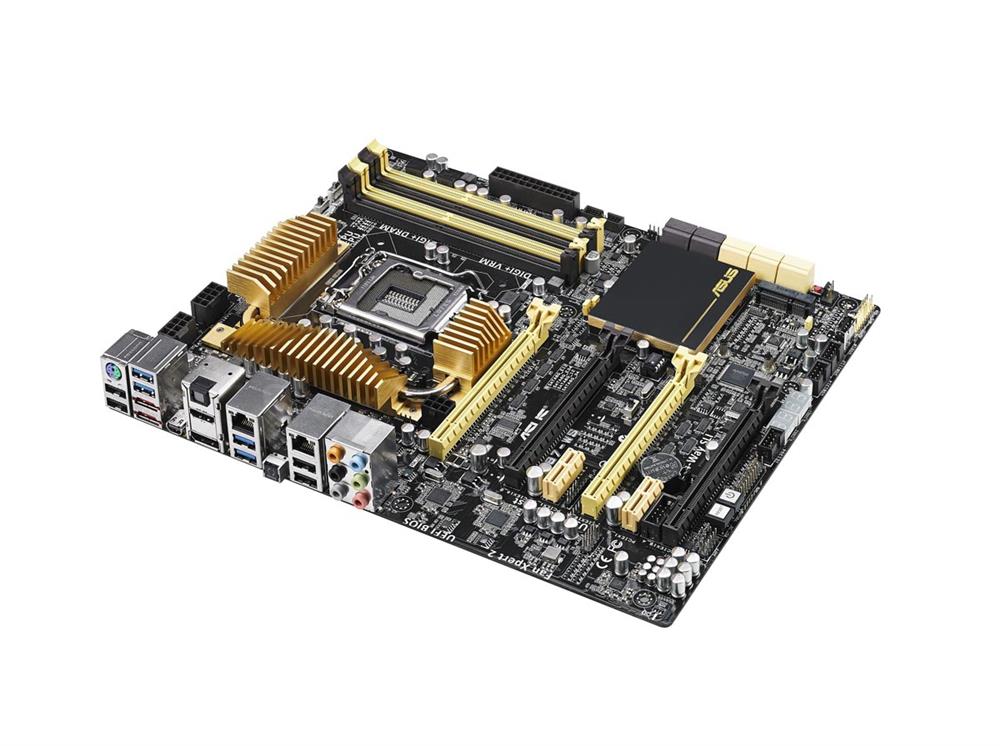

90SB0390-M0UAY0 ASUS Z87-WS Socket LGA 1150 Intel Z87 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon E3-1200 v3 Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Server Motherboard (Refurbished)

Mfg Part No:

90SB0390-M0UAY0

$512.69 $732.41 You Save: $219.72 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of 90SB0390-M0UAY0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90SB0390-M0UAY0

Model
Manufacturer	ASUS
Manufacturer Part #	90SB0390-M0UAY0
Performance
Product Type	Server Motherboard
Form Factor	ATX
CPU Socket Type	LGA 1150
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor Intel Xeon Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel Z87
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-19200 (DDR3-2400) PC3-21300 (DDR3-2666)
Maximum Installed Memory	32 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x16
Expansion Slots Details	4 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8 or quad x8) 2 x PCIe 2.0 x1
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC1150
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector HDMI PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 2 x eSATA 6Gb/s 2 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 4 x USB 2.0 (one port can be switched to USB BIOS Flashback®) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback® Button(s) 1 x Mini DisplayPort(s) Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, blue) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 2.0/1.1 vertical port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 10 x SATA 6Gb/s connector(s) 1 x mSATA connector 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 2 x 8-pin EATX 12 V Power connector 1 x 6-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x DirectKey Button(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Dr.Power switch(es)
