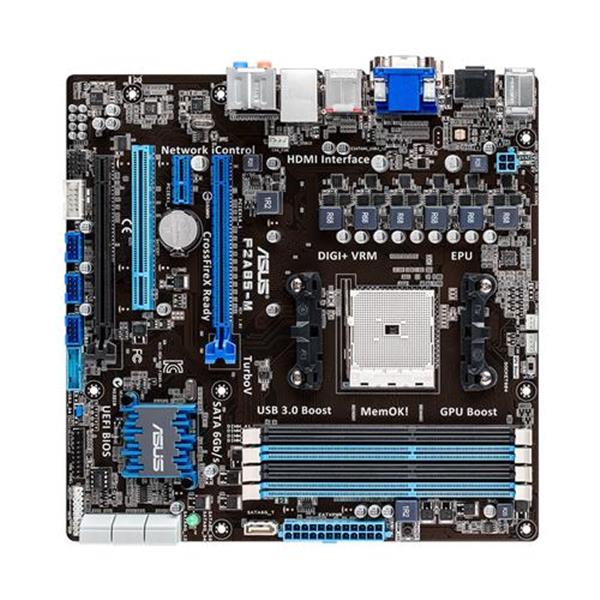

F2A85-M/CSM-A1 ASUS Socket FM2 AMD A85X Chipset AMD Athlon/ A-Series Processors Support DDR3 4x DIMM 7x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

F2A85-M/CSM-A1

$265.73 $332.17 You Save: $66.44 (20% Holiday Discount)
Availability:Available for Order

Looking for a large quantity of F2A85-M/CSM-A1? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for F2A85-M/CSM-A1

Model
Manufacturer ASUS
Manufacturer Part # F2A85-M/CSM-A1
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type Socket FM2
Supported CPU(s) AMD A-Series Processor
AMD Athlon Processor
Chipset AMD A85X
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC4-12800 (DDR4-1600)
PC4-14900 (DDR4-1866)
PC4-17000 (DDR4-2133)
PC4-19200 (DDR4-2400)
Maximum Installed Memory 64 GB
Expansion Slots PCI
PCI-E 2.0 x1
PCI-E 2.0 x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports Audio-In
Audio-Out
Chassis Fan Connector
CPU Fan Connector
PS/2 Keyboard
PS/2 Mouse
RJ-45
TPM Header
USB 2.0
Connectors/Ports Details Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x eSATA
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 1
  • 4 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)

  • Internal I/O Ports
  • 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 1 x TPM connector(s)
  • 1 x COM port(s) connector(s)
  • 7 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 1 x Chassis Fan connector(s) (4 -pin)
  • 1 x Power Fan connector(s) (3 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x MemOK! button(s)
  • 1 x GPU Boost switch(es)
