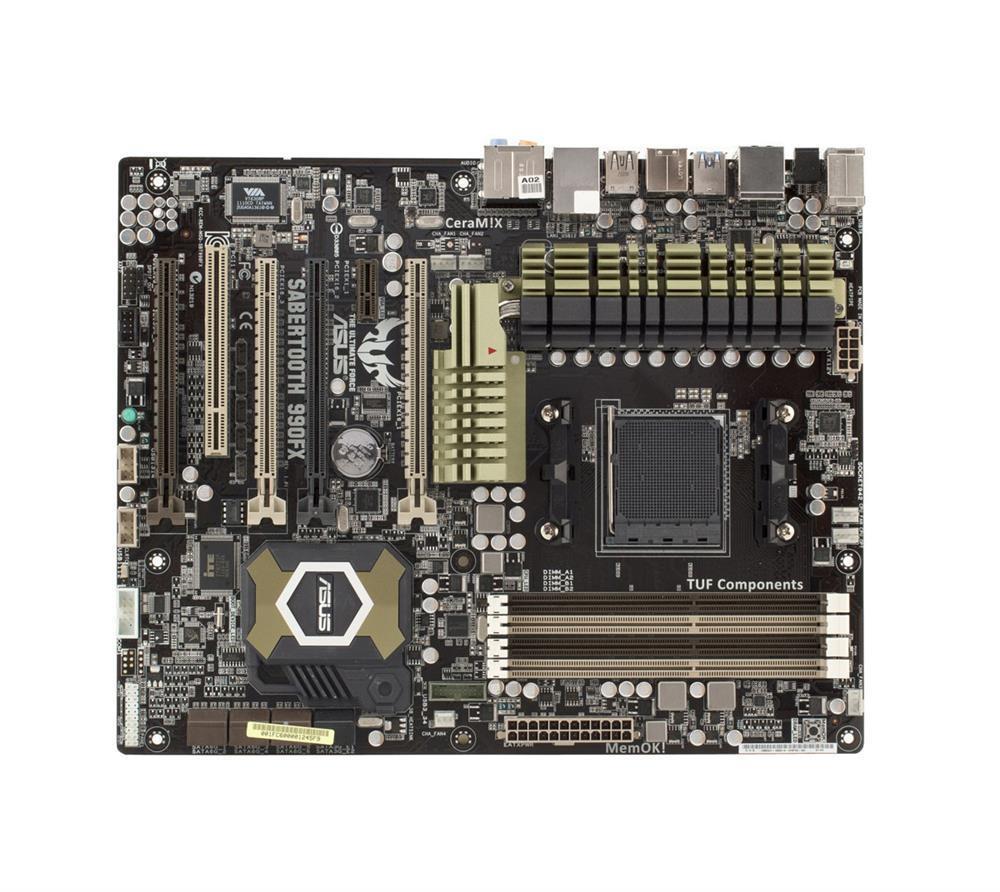

990FX ASUS Socket AM3+ AMD + SB950 Chipset AMD FX/ AMD Phenom II/ Athlon II/ AMD Sempron 100 Series Processors DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

990FX

Global Part Number (GPN):

1466606067

$408.94 $908.75 You Save: $499.81 (55% Special Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 990FX? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for 990FX

Model
Manufacturer	ASUS
Manufacturer Part #	990FX
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket AM3 Socket AM3+
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor AMD Sempron Processor
Supported CPU Technologies	Cool n Quiet Technology
Chipset	AMD 990FX
South Bridge Chipset	AMD SB950
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-6400 (DDR3-800)
Maximum Installed Memory	64GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x16
Expansion Slots Details	3 x PCI Express 2.0 x16 slots (PCIE2/PCIE3 x16 mode; PCIE4 x4 mode) 1 x PCI Express 2.0 x1 slot 2x PCI slots Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX Supports NVIDIA Quad SLI and SLI
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC892
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Chassis Fan Connector COM CPU Fan Connector PS/2 PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Internal Connectors 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug functions 1x IR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector 3 x USB 2.0 headers (support 6 USB 2.0 ports) Back I/O Panel 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Coaxial SPDIF Out Port 1 x Optical SPDIF Out Port 6 x USB 2.0 Ports 2 x USB 3.1 Gen1 Ports (Etron EJ168A) 1 x eSATA3 Connector 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Information
Features	ASRock Extreme Tuning Utility (AXTU) ASRock Instant Boot ASRock Instant Flash ASRock APP Charger ASRock APP Shop ASRock XFast USB ASRock XFast LAN ASRock XFast RAM ASRock On/Off Play Technology Hybrid Booster CPU Frequency Stepless Control ASRock U-COP Boot Failure Guard (B.F.G.)
