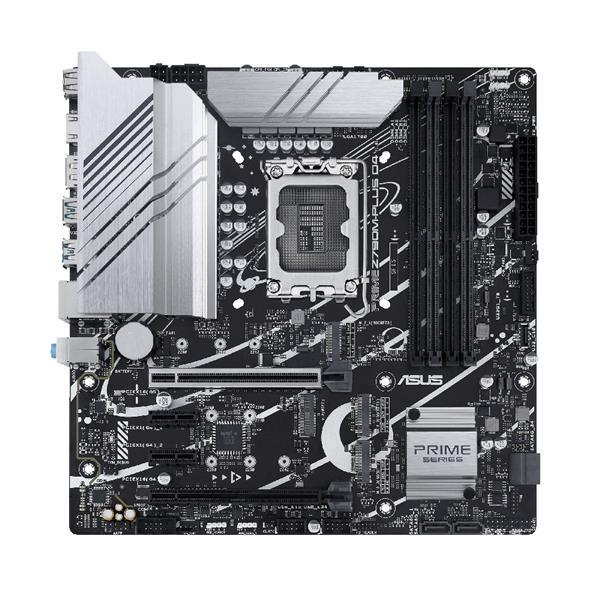

90MB1E70-M0AAY0 ASUS PRIME Z790M-PLUS Socket LGA1700 Intel Z790 Chipset 13th/12th Generation Core/ Pentium Gold And Celeron Processors Support DDR5 4x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

90MB1E70-M0AAY0

Global Part Number (GPN):

1499429826

$352.01 $782.25 You Save: $430.24 (55% Father's Day Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 90MB1E70-M0AAY0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90MB1E70-M0AAY0

Model
Manufacturer	ASUS
Manufacturer Part #	90MB1E70-M0AAY0
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	LGA 1700
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Chipset	Intel Z790 Chipset
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	DDR5-4800 DDR5-5200 DDR5-5400 DDR5-5600
Maximum Installed Memory	128 GB
Expansion Slots	PCI-E 4.0 x16 PCI-E 5.0 x16
Storage Controller	SATA 6.0 Gbps
Network	Ethernet
Connectors/Ports	8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector RJ-45 TPM Header
Connectors/Ports Details	Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks Internal I/O Connectors 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin + 12V Power connector 1 x 4-pin + 12V Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header
