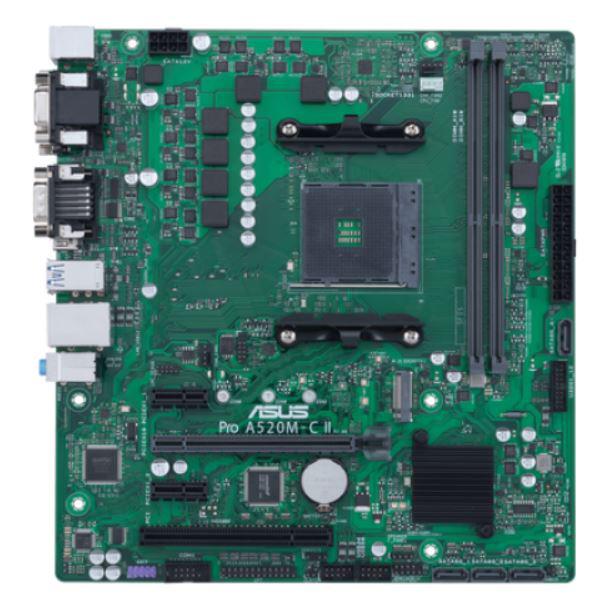

90MB18F0-M0AAYC ASUS Pro A520M-C II/CSM Socket AM4 AMD A520 Chipset AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Processors Support DDR4 4x DIMM 4x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

90MB18F0-M0AAYC

Global Part Number (GPN):

1499429901

$290.15 $644.77 You Save: $354.62 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 90MB18F0-M0AAYC? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90MB18F0-M0AAYC

Model
Manufacturer	ASUS
Manufacturer Part #	90MB18F0-M0AAYC
Performance
Product Type	System Board
Form Factor	Micro ATX
CPU Socket Type	Socket AM4
Supported CPU(s)	AMD Ryzen Processor
Chipset	AMD A520
Number of Memory Slot(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400) PC4-21333 (DDR4-2666) PC4-23466 (DDR4-2933) PC4-25600 (DDR4-3200)
Expansion Slots	PCI-E 3.0 x1 PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Network	Ethernet
Connectors/Ports	Chassis Fan Connector COM CPU Fan Connector DVI-D HDMI RJ-45 Serial TPM Header USB 2.0 VGA
Connectors/Ports Details	Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPC debug header 1 x LPT header 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header

Request for Quote: 90MB18F0-M0AAYC

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90MB18F0-M0AAYC. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.

This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.

Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.

This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.

All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.

Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
