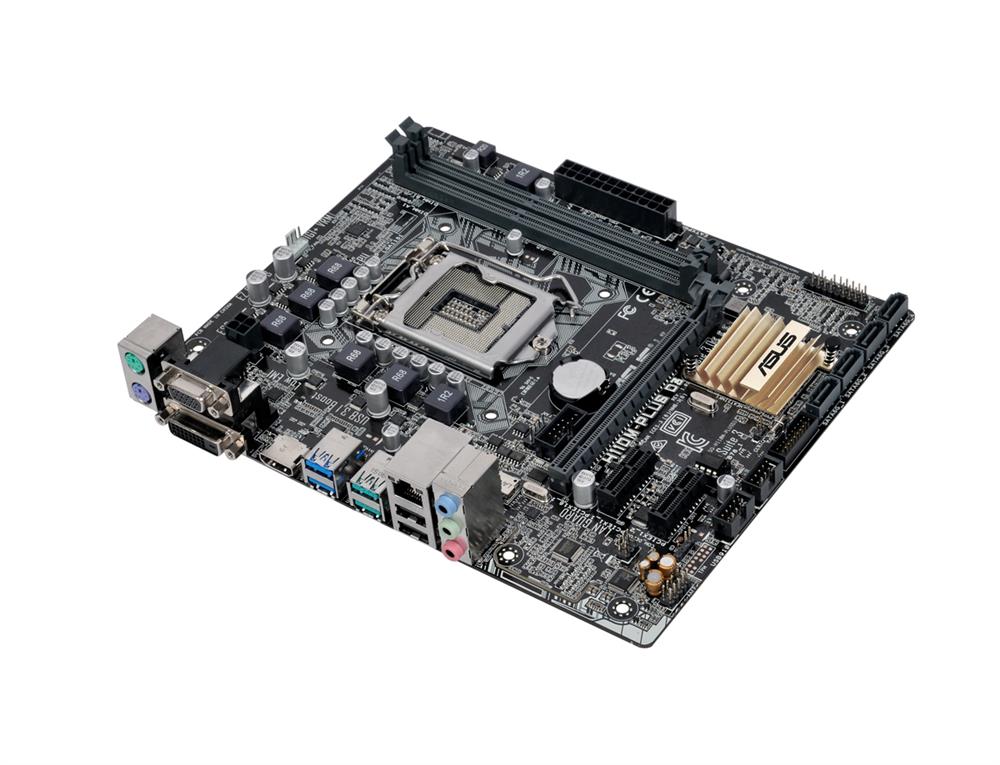

90MB0NN0-M0EAY0 ASUS H110M-PLUS D3 Socket LGA 1151 Intel H110 Chipset 6th Generation Core i7 / i5 / i3 Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s uATX Motherboard (Refurbished)

Mfg Part No:

90MB0NN0-M0EAY0

$170.91 $227.88 You Save: $56.97 (25% Autumn Discount)
Availability:Available for Order

Looking for a large quantity of 90MB0NN0-M0EAY0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90MB0NN0-M0EAY0

Model
Manufacturer ASUS
Manufacturer Part # 90MB0NN0-M0EAY0
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1151
Supported CPU(s) Intel Celeron Processor
Intel Core i3 Processor
Intel Core i5 Processor
Intel Core i7 Processor
Intel Pentium Processor
Chipset Intel H110
Number of Memory Slot(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-14900 (DDR3-1866)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x1
PCI-E 2.0 x16
PCI-E 3.0 x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC887-VD2
Network Gigabit Ethernet
Connectors/Ports Audio-In
Audio-Out
Chassis Fan Connector
COM
CPU Fan Connector
DVI-D
PS/2 Keyboard
PS/2 Mouse
RJ-45
TPM Header
USB 1.1
USB 2.0
USB 3.1
Connectors/Ports Details Back I/O Ports
  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 2 (teal blue)Type-A
  • 2 x USB 3.1 Gen 1 (blue)
  • 2 x USB 2.0
  • 3 x Audio jack(s)

  • Internal I/O Ports
  • 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 4 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 1 x Chassis Fan connector(s) (1 x 4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
  • Request for Quote:  90MB0NN0-M0EAY0

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90MB0NN0-M0EAY0. Or Request a Quote below:



    General Information

  • Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.
  • This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
  • Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
  • This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
  • All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
  • Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
  • 90MB0NN0-M0EAY0 ASUS H110M-PLUS D3 Socket LGA 1151 Intel H110 Chipset 6th Generation Core i7 / i5 / i3 Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s uATX Motherboard (Refurbished)
