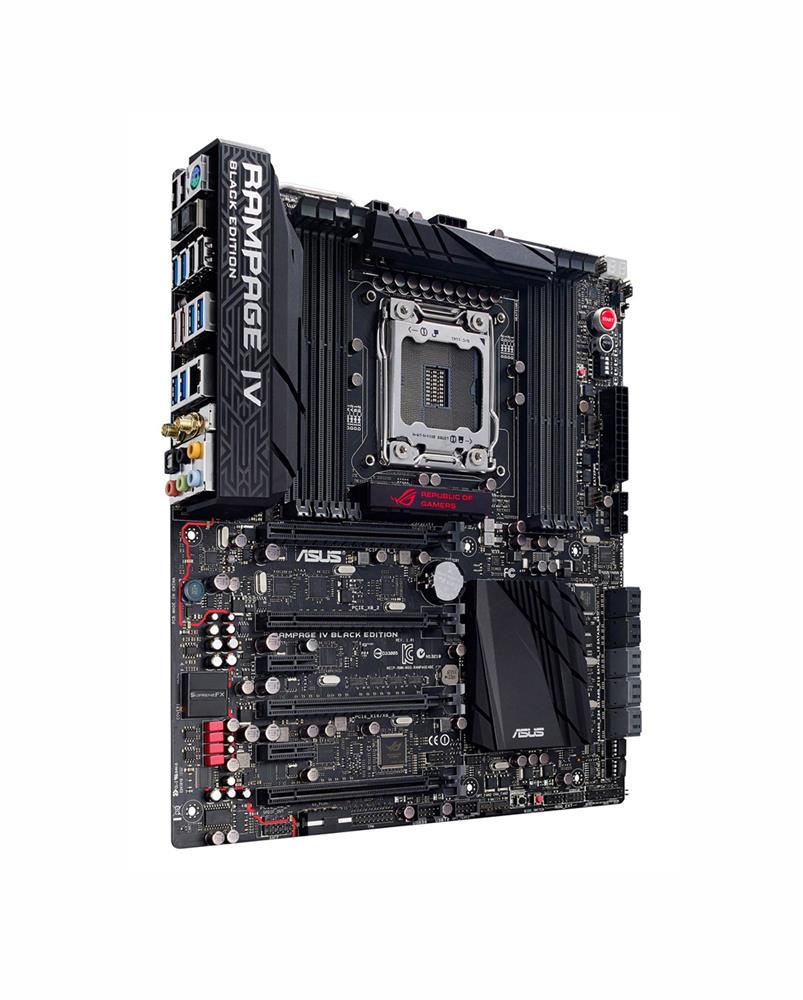

90MB0GX1-M0EAY0 ASUS Rampage IV Black Edition Socket LGA 2011 Intel X79 Chipset Core i7 Processors Support DDR3 8x DIMM 2x SATA 6.0Gb/s Extended ATX Motherboard (Refurbished)

Mfg Part No:

90MB0GX1-M0EAY0

$587.69 $839.56 You Save: $251.87 (30% Veterans Day Discount)
Availability:Available for Order

Looking for a large quantity of 90MB0GX1-M0EAY0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90MB0GX1-M0EAY0

Model
Manufacturer ASUS
Manufacturer Part # 90MB0GX1-M0EAY0
Performance
Product Type System Board
Form Factor E-ATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Core i7 Processor
Supported CPU Technologies Intel Turbo Boost Technology
Chipset Intel X79 Express
Number of Memory Slot(s) 8
Number of Memory Channel(s) 4
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-14900 (DDR3-1866)
PC3-19200 (DDR3-2400)
PC3-21300 (DDR3-2666)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 128 GB
Expansion Slots PCI-E 2.0 x1
PCI-E 2.0 x16
PCI-E 3.0 x16
Storage Controller SATA 3.0 Gbps
SATA 6.0 Gbps
Network Gigabit Ethernet
Connectors/Ports 8-pin 12V Power Connector
Audio-In
Audio-Out
PS/2
PS/2 Keyboard
PS/2 Mouse
RJ-45
TPM Header
USB 2.0
USB 3.1
Connectors/Ports Details Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 2 x eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 6 x USB 3.1 Gen 1 (blue)
  • 4 x USB 2.0 (one port can be switched to ROG Connect)
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
  • 1 x Clear CMOS button(s)
  • 1 x ROG Connect On/ Off switch(es)
  • 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)

  • Internal I/O Ports
  • 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 1 x TPM header
  • 6 x SATA 6Gb/s connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 3 x Optional Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Q-Connector)
  • 1 x Chassis Intrusion connector(s)
  • 1 x DirectKey Button(s)
  • 1 x DRCT header(s)
  • 1 x MemOK! button(s)
  • 1 x Slow Mode switch(es)
  • 11 x ProbeIt Measurement Points
  • 3 x Thermal sensor connector(s)
  • 1 x LN2 Mode header(s)
  • 1 x EZ Plug connector(s) (4-pin Molex power connector)
  • 1 x Power-on button(s)
  • 1 x Reset button(s)
  • 1 x BIOS Switch button(s)
  • 1 x ROG extension (ROG_EXT) header(s)
  • Request for Quote:  90MB0GX1-M0EAY0

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90MB0GX1-M0EAY0. Or Request a Quote below:



    General Information

  • Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.
  • This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
  • Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
  • This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
  • All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
  • Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
