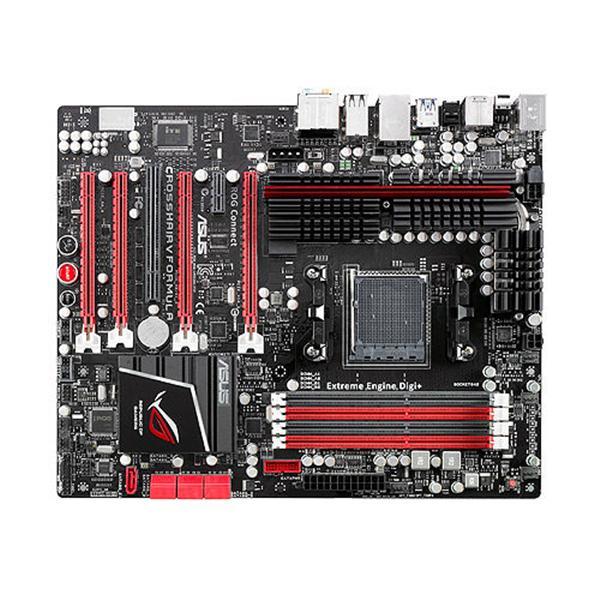

90-MIBFM0-G0EAY00Z ASUS Socket AM3+ AMD 990FX + SB950 Chipset AMD FX/ AMD Phenom II/ Athlon II/ AMD Sempron 100 Series Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MIBFM0-G0EAY00Z

Global Part Number (GPN):

1465355081

$501.07 $1,113.49 You Save: $612.42 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 90-MIBFM0-G0EAY00Z? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MIBFM0-G0EAY00Z

Model
Manufacturer	ASUS
Manufacturer Part #	90-MIBFM0-G0EAY00Z
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	Socket AM3+
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor AMD Turion 64 Processor
Chipset	AMD 890FX
South Bridge Chipset	AMD SB950
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16
Storage Controller	SATA 6.0 Gbps
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse Serial USB 2.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 8 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Clear CMOS button(s) Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 7 x SATA 6Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 3 x Optional Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 8 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x En/Dis-able Clr CMOS header(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Power-on button(s) 1 x Reset button(s) 1 x CPU Level Up button(s) 1 x ROG Connect switch(es) 1 x Go Button(s)
