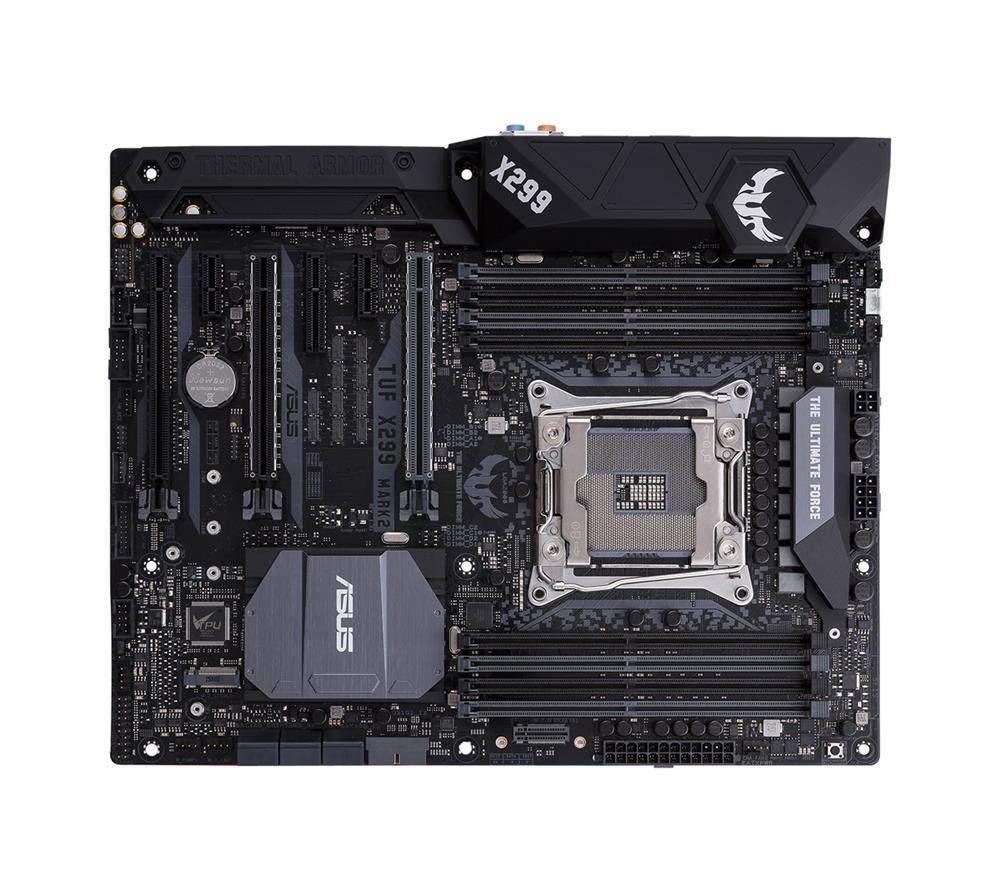

90MB0UB0-M0EAY0 ASUS TUF X299 MARK 2 Socket 2066 Intel X299 Chipset Core X-Series Processors Support DDR4 8x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90MB0UB0-M0EAY0

$593.95 $791.93 You Save: $197.98 (25% Autumn Discount)
Availability:Available for Order

Looking for a large quantity of 90MB0UB0-M0EAY0? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90MB0UB0-M0EAY0

Model
Manufacturer ASUS
Manufacturer Part # 90MB0UB0-M0EAY0
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 2066
Supported CPU(s) Intel Core X-Series Processor
Number of Memory Slot(s) 8
Number of Memory Channel(s) 4
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
PC4-19200 (DDR4-2400)
PC4-23466 (DDR4-2933)
PC4-25600 (DDR4-3200)
Maximum Installed Memory 256 GB
Expansion Slots PCI-E 2.0 x1
PCI-E 2.0 x16
PCI-E 2.0 x4
PCI-E 3.0 x1
PCI-E 3.0 x16
PCI-E 3.0 x4
Expansion Slots Details 28-Lane CPU
  • 2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
  • 2 x PCIe 3.0/2.0 x1
  • 2 x PCIe 3.0/2.0 x1z

  • 44-Lane CPU
  • 2 x PCIe 3.0/2.0 x1
  • 1 x PCIe 3.0 x4 (max at x2 mode) *1
  • 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

  • 16-Lane CPU
  • 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
  • 1 x PCIe 3.0 x4 (max at x2 mode) *1
  • 1 x PCIe 3.0 x4 (max at x2 mode) *1
  • Storage Controller SATA 6.0 Gbps
    Network Gigabit Ethernet
    Connectors/Ports Audio-In
    Audio-Out
    Chassis Fan Connector
    CPU Fan Connector
    PS/2 Keyboard
    PS/2 Mouse
    RJ-45
    TPM Header
    USB 2.0
    VGA
    Connectors/Ports Details Back I/O Ports
  • 2 x USB 3.1 Gen 2 Type-A
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 4 x USB 3.1 Gen 1
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 2.0
  • 5 x Audio jack(s)
  • 1 x Optical S/PDIF out

  • Internal I/O Ports
  • 1 x 24-pin EATX Power connector(s)
  • 1 x VROC_HW_Key
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 1 x H_AMP fan connector
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x MemOK! button(s)
  • 1 x CPU Fan connector(s)
  • 1 x Thunderbolt header(s)
  • 1 x CPU OPT Fan connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  • 1 x Clear CMOS jumper(s)
  • 1 x AAFP connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x AIO_PUMP connector
  • 1 x CPU_OV jumper
  • 1 x W_PUMP+ connector
  • 6 x SATA 6Gb/s connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x Thermal sensor connector(s)
  • 2 x 3D Mount screw port(s)
  • 1 x M.2_FAN connector
  • 1 x System panel(s) (Q-Connector)
  • 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  • Request for Quote:  90MB0UB0-M0EAY0

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90MB0UB0-M0EAY0. Or Request a Quote below:



    General Information

  • Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or up to 25% on certain products which differs from product to product.
  • This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
  • Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
  • This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
  • All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
  • Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.
  • 90MB0UB0-M0EAY0 ASUS TUF X299 MARK 2 Socket 2066 Intel X299 Chipset Core X-Series Processors Support DDR4 8x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
