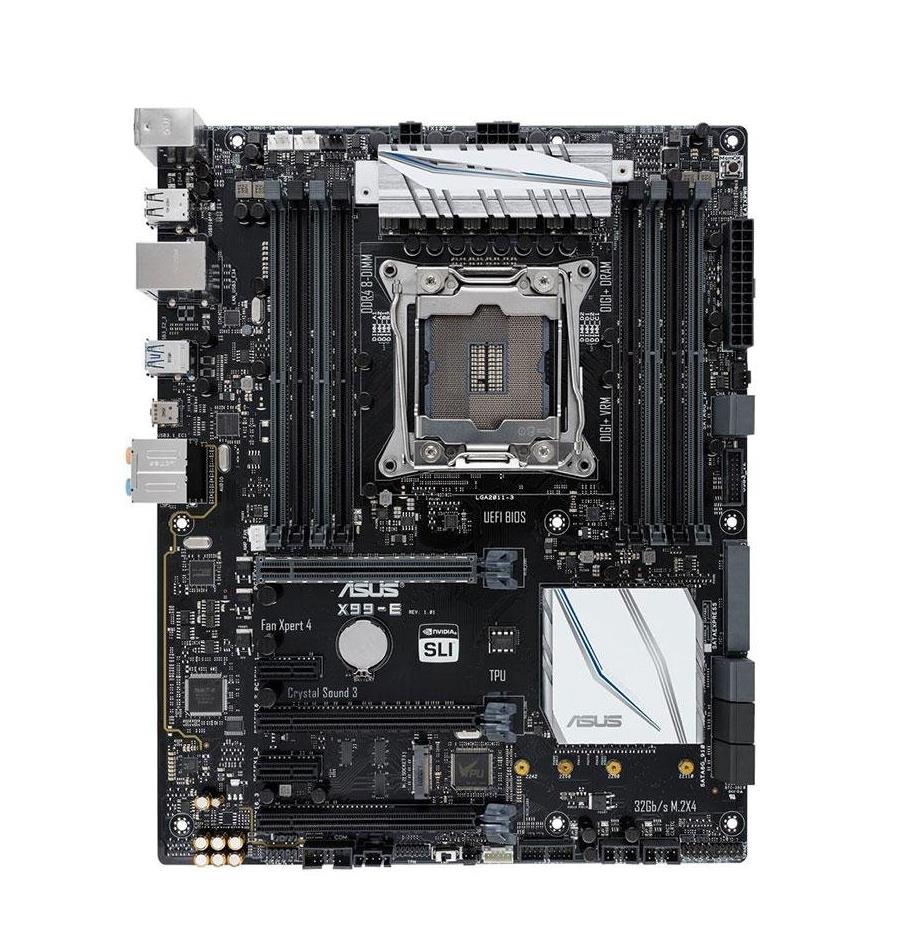

90MB0QL0-M0EAY1 ASUS X99-E Socket LGA 2011-v3 Intel X99 Chipset Core i7 Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)
90MB0QL0-M0EAY1 ASUS X99-E Socket LGA 2011-v3 Intel X99 Chipset Core i7 Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)

90MB0QL0-M0EAY1 ASUS X99-E Socket LGA 2011-v3 Intel X99 Chipset Core i7 Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90MB0QL0-M0EAY1

$471.40 $673.43 You Save: $202.03 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of 90MB0QL0-M0EAY1? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90MB0QL0-M0EAY1

Model
Manufacturer ASUS
Manufacturer Part # 90MB0QL0-M0EAY1
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 2011-3
Supported CPU(s) Intel Core i7 Processor
Supported CPU Technologies Intel Turbo Boost Technology
Chipset Intel X99
Number of Memory Slot(s) 8
Number of Memory Channel(s) 4
Supported Memory Standard(s) PC4-17000 (DDR4-2133)
 PC4-19200 (DDR4-2400)
 PC4-21333 (DDR4-2666)
 PC4-25600 (DDR4-3200)
Maximum Installed Memory 128 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
 PCI-E 3.0 x1
 PCI-E 3.0 x16
Expansion Slots Details 40-Lane CPU
  • 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *1
  • 2 x PCIe 2.0 x1
    • 28-Lane CPU
  • 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *1
  • 2 x PCIe 2.0 x1
    		•
    Storage Controller SATA 6.0 Gbps
    Audio Controller Realtek ALC1150
    Network Gigabit Ethernet
    Connectors/Ports Audio-In
     Audio-Out
     Chassis Fan Connector
     CPU Fan Connector
     PS/2 Keyboard
     PS/2 Mouse
     RJ-45
     USB 2.0
     USB 3.1
    Connectors/Ports Details Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x LAN (RJ45) port(s)
  • 1 x USB 3.1 Gen 2 (black)USB Type-CTM
  • 4 x USB 3.1 Gen 1 (blue)
  • 4 x USB 2.0
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)

    • Back I/O Ports
  • 1 x AAFP connector
  • 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
  • 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
  • 1 x TPM connector(s)
  • 8 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  • 1 x Chassis Fan connector(s) (1 x 4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x Thunderbolt header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x EZ XMP switch
  • 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
  • 1 x DRCT header(s)
  • 1 x MemOK! button(s)
  • 1 x Thermal sensor connector(s)
  • 1 x CPU/DRAM overvoltage jumper(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x Water Pump header (4-pin)
  • 1 x COM port header
  • 1 x High AMP Fan header (4-pin)
    		•
