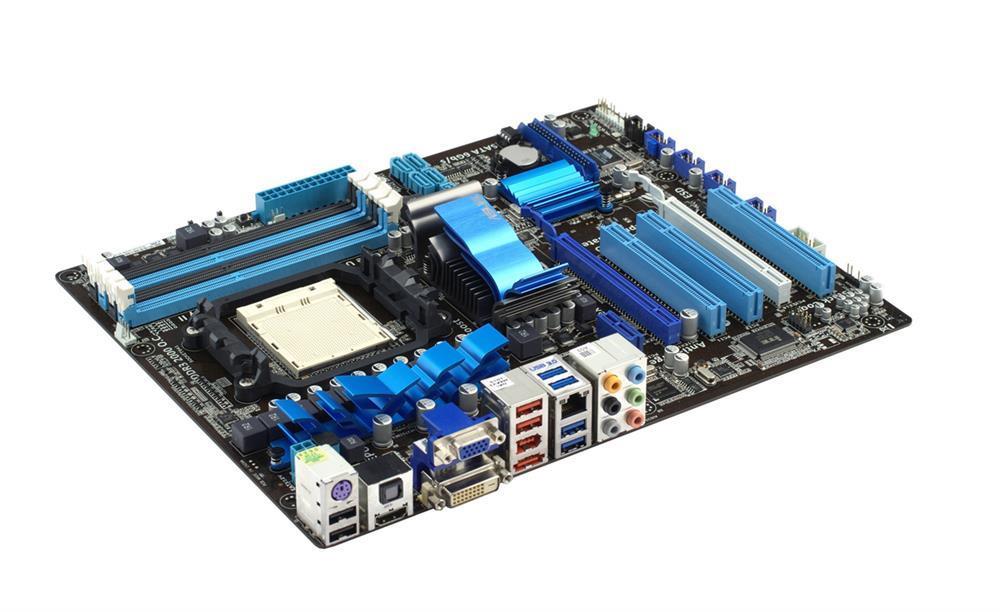

90-MIBDQ0-G0AAY0DZ ASUS M4A88T-V EVO/USB3 Socket AM3 AMD 880G + SB710 Chipset AMD Phenom II/ AMD Athlon II/ AMD Sempron Processors Support DDR3 4x DIMM 5x SATA 3.0 Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MIBDQ0-G0AAY0DZ

Global Part Number (GPN):

1482429342

$458.44 $1,018.75 You Save: $560.31 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 90-MIBDQ0-G0AAY0DZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MIBDQ0-G0AAY0DZ

Model
Manufacturer	ASUS
Manufacturer Part #	90-MIBDQ0-G0AAY0DZ
Performance
Product Type	System Board
Form Factor	ATX
Supported CPU(s)	AMD Athlon II Processor AMD Phenom II Processor AMD Sempron Processor
Supported CPU Technologies	Cool n Quiet Technology
Chipset	AMD 880G
South Bridge Chipset	AMD SB710
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-16000 (DDR3-2000) PC3-8500 (DDR3-1066)
Maximum Installed Memory	16 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16
Expansion Slots Details	1 x PCIe 2.0 x16 (blue) 2 1 x PCIe 2.0 x16 (x4 mode, gray) 2 1 x PCIe 2.0 x1 *2v 3 x PCI
Storage Controller	SATA 3.0 Gbps
Audio Controller	Realtek ALC892
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector D-Sub DVI PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x eSATA 3Gb/s 1 x IEEE 1394a 2 x USB 3.1 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) Internal I/O Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x IDE connector(s) 1 x COM port(s) connector(s) 5 x SATA 3Gb/s connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x Core Unlocker switch(es) 1 x Turbo Key II switch(es)
