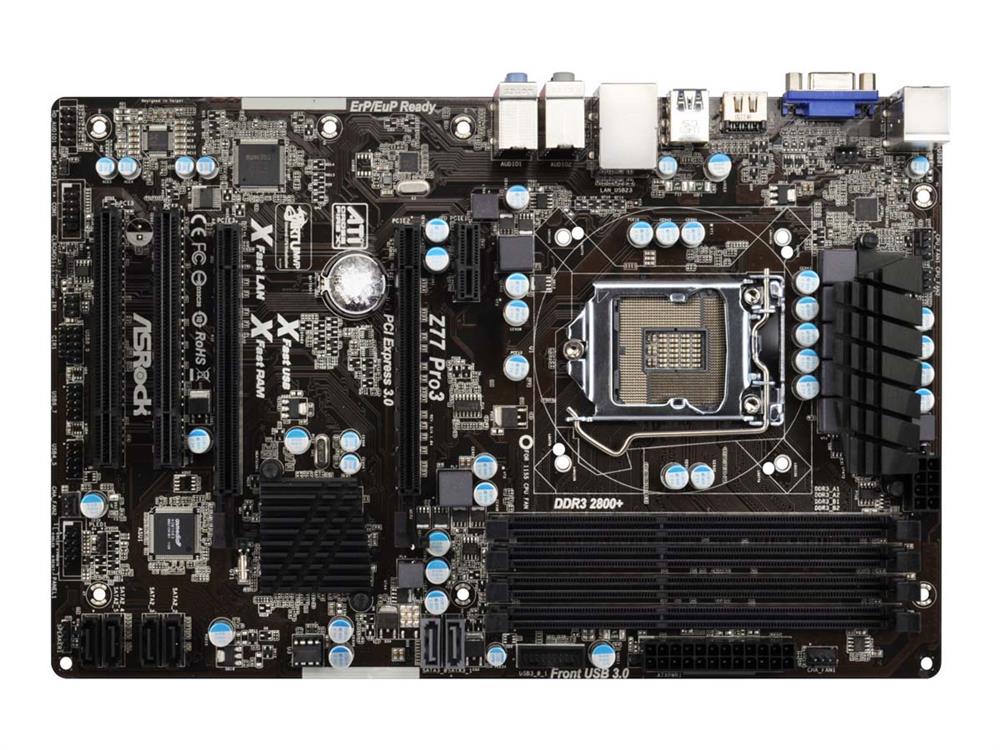

Z77-PRO3 ASRock Socket LGA 1155 Intel Z77 Chipset Xeon / Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

Z77-PRO3

Global Part Number (GPN):

1471517877

$319.96 $711.02 You Save: $391.06 (55% Spring Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of Z77-PRO3? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for Z77-PRO3

Model
Manufacturer	ASRock
Manufacturer Part #	Z77-PRO3
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1155
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Hyper-Threading Technology Intel Turbo Boost Technology
Chipset	Intel Z77 Express
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x16
Expansion Slots Details	1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode) 1 x PCI Express 2.0 x1 slot 2 x PCI slots Supports AMD Quad CrossFireX and CrossFireX
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC892
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector D-Sub HDMI Microphone PS/2 Keyboard RJ-45 USB 2.0
Connectors/Ports Details	Connector 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions 2 x SATA3 6.0 Gb/s connectors 1 x IR header 1 x CIR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin) 1 x Power Fan connector (3-pin) 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector 3 x USB 2.0 headers (support 6 USB 2.0 ports) 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) Rear Panel I/O Connectors 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions 2 x SATA3 6.0 Gb/s connectors 1 x IR header 1 x CIR header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin) 1 x Power Fan connector (3-pin) 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector 3 x USB 2.0 headers (support 6 USB 2.0 ports) 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

Request for Quote: Z77-PRO3

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z77-PRO3. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Z77-PRO3 ASRock Socket LGA 1155 Intel Z77 Chipset Xeon / Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
