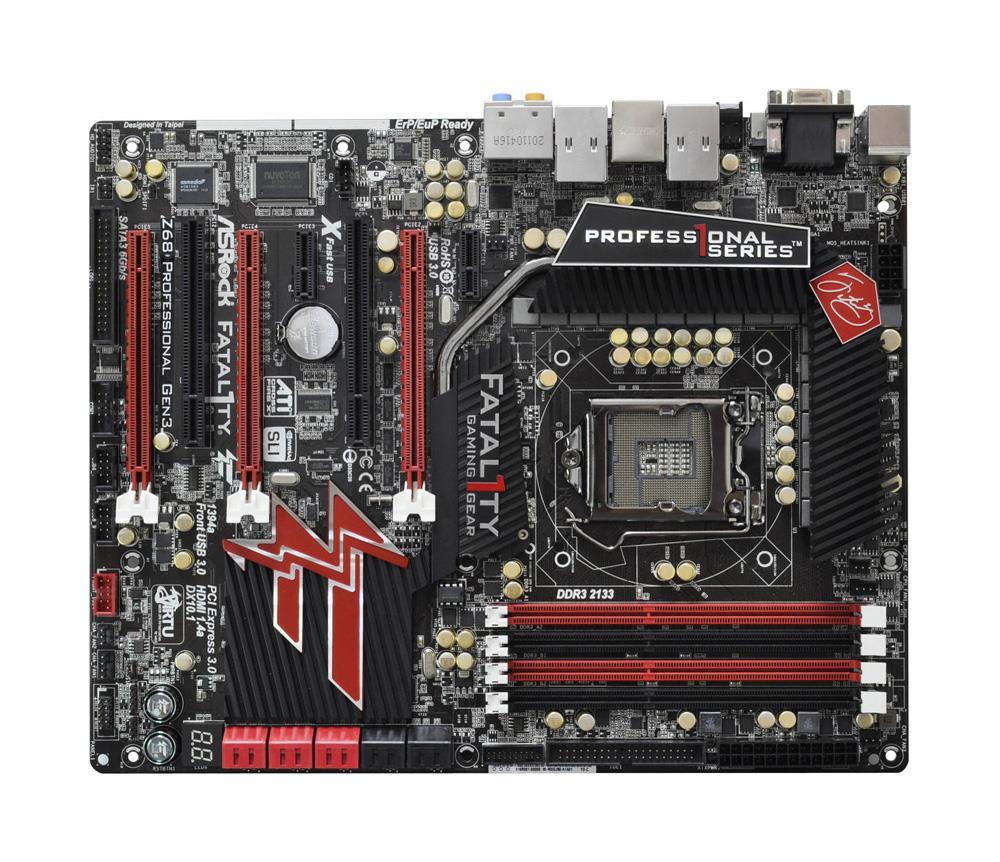

Z68-PROFESSIONAL-GEN ASRock Fatal1ty Z68 Professional Gen3 Socket LGA 1155 Intel Z68 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

Z68-PROFESSIONAL-GEN

$391.54 $559.35 You Save: $167.81 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of Z68-PROFESSIONAL-GEN? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for Z68-PROFESSIONAL-GEN

Model
Manufacturer	ASRock
Manufacturer Part #	Z68-PROFESSIONAL-GEN
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1155
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor Intel Xeon Processor
Supported CPU Technologies	Hyper-Threading Technology Intel Turbo Boost Technology
Chipset	Intel Z68 Express
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC3-10600 (DDR3-1333) PC3-12800 (DDR3-1600) PC3-14900 (DDR3-1866) PC3-8500 (DDR3-1066)
Maximum Installed Memory	32 GB
Expansion Slots	PCI-E 2.0 x1 PCI-E 2.0 x16 PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC892
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Audio-Out Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0
Connectors/Ports Details	Connector 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions 6 x SATA3 6.0 Gb/s connectors 1 x ATA133 IDE connector (supports 2 x IDE devices) 1 x Floppy connector 1 x IR header 1 x COM port header 1 x HDMI_SPDIF header 1 x IEEE 1394 header 1 x Power LED header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector CD in header Front panel audio connector 2 x USB 2.0 headers (support 4 USB 2.0 ports) 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) 1 x Dr. Debug with LED Rear Panel I/O 1 x PS/2 Keyboard Port 1 x VGA/D-Sub Port 2 x HDMI Ports 1 x Optical SPDIF Out Port 3 x Ready-to-Use USB 2.0 Ports 1 x Fatal1ty Mouse Port (USB 2.0) 1 x eSATA3 Connector 4 x Ready-to-Use USB 3.1 Gen1 Ports 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x IEEE 1394 Port 1 x Clear CMOS Switch with LED HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Request for Quote: Z68-PROFESSIONAL-GEN

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z68-PROFESSIONAL-GEN. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Z68-PROFESSIONAL-GEN ASRock Fatal1ty Z68 Professional Gen3 Socket LGA 1155 Intel Z68 Chipset 3rd & 2nd Generation Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
