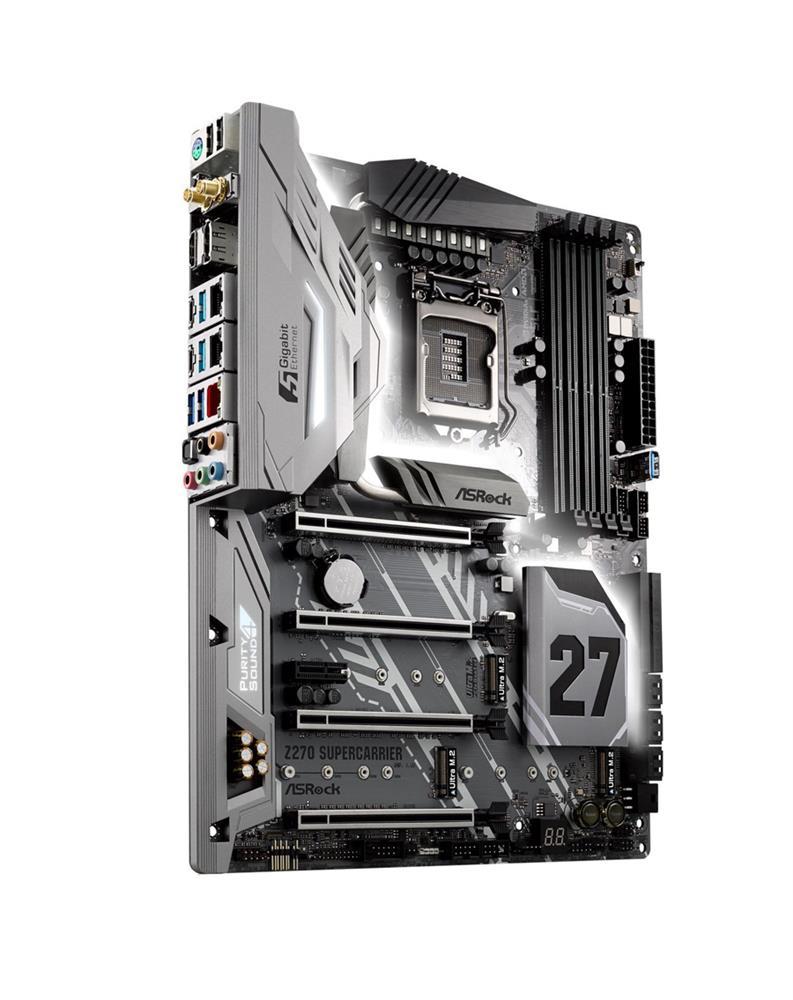

Z270 SuperCarrier ASRock Socket LGA 1151 Intel Z270 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 10x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

Z270 SuperCarrier

Global Part Number (GPN):

1489221222

$456.07 $1,013.50 You Save: $557.43 (55% Father's Day Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of Z270 SuperCarrier? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for Z270 SuperCarrier

Model
Manufacturer	ASRock
Manufacturer Part #	Z270 SuperCarrier
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Supported CPU Technologies	Intel Turbo Boost Technology
Chipset	Intel Z270
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-23466 (DDR4-2933) PC4-25600 (DDR4-3200)
Maximum Installed Memory	64 GB
Expansion Slots	PCI-E 3.0 x1 PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC1220
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Chassis Fan Connector CPU Fan Connector PS/2 Keyboard PS/2 Mouse RJ-45 USB 2.0 USB 3.1
Connectors/Ports Details	Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x AURA RGB LED Header 1 x CPU Fan Connector (4-pin) 1 x CPU Optional/Water Pump Fan Connector (4-pin) 2 x Chassis Fan Connectors (4-pin) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 1 x Right Angle Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z270) (Supports ESD Protection (ASRock Full Spike Protection) 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection) 1 x Vertical Type A USB 3.1 Gen1 (Intel® Z270) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x XMP Switch Rear Panel I/O 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.2 2 x Intel® Thunderbolt™ 3 (Compatible with USB 3.1 Gen2 and USB-C Display) 1 x Optical SPDIF Out Port 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Request for Quote: Z270 SuperCarrier

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no Z270 SuperCarrier. Or Request a Quote below:

Quantity

How soon you need it?

General Information

Z270 SuperCarrier ASRock Socket LGA 1151 Intel Z270 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 10x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
