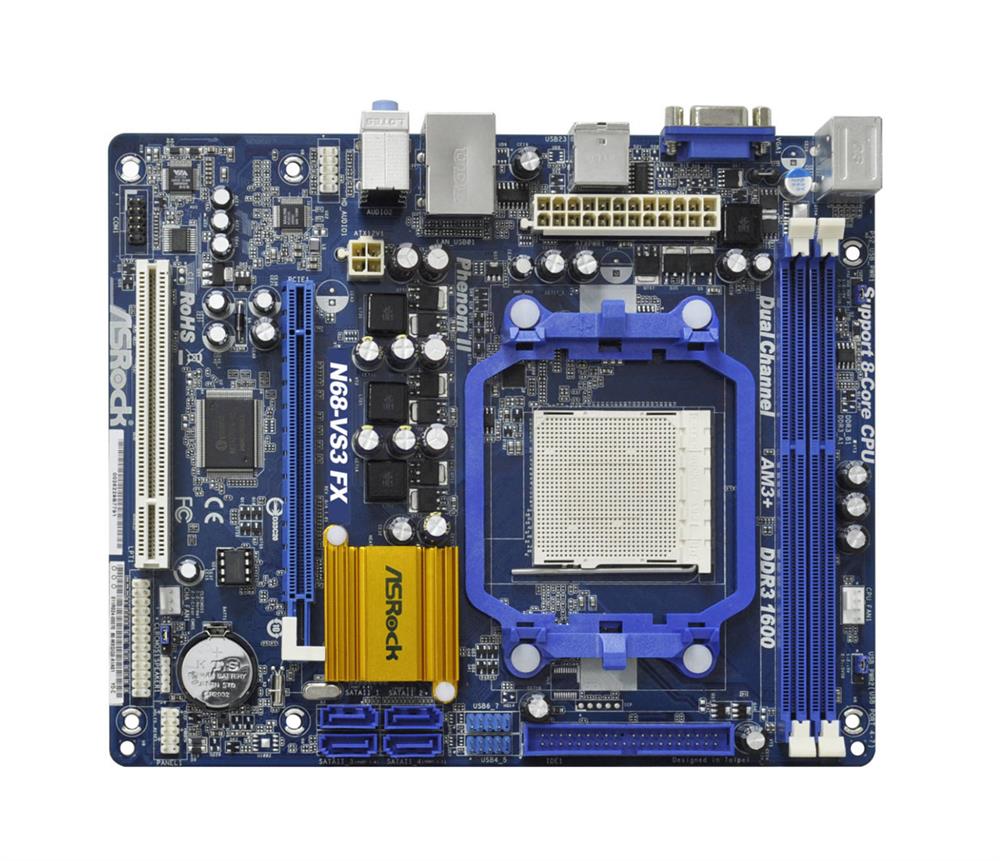

N68-VS3-FX ASRock Socket AM3+ AMD Phenom II X6/ X4/ X3/ X2/ AMD Athlon II X4/ X3/ X2 AMD Sempron Processors Support DDR3 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
N68-VS3-FX ASRock Socket AM3+ AMD Phenom II X6/ X4/ X3/ X2/ AMD Athlon II X4/ X3/ X2 AMD Sempron Processors Support DDR3 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

N68-VS3-FX ASRock Socket AM3+ AMD Phenom II X6/ X4/ X3/ X2/ AMD Athlon II X4/ X3/ X2 AMD Sempron Processors Support DDR3 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)

Mfg Part No:

N68-VS3-FX

Icon Global Part Number (GPN):

1472930403

Call us at (800) 821-3354 for price and availability or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for N68-VS3-FX

Model
Manufacturer ASRock
Manufacturer Part # N68-VS3-FX
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type Socket AM3+
Supported CPU(s) AMD Athlon II Processor
 AMD Phenom II Processor
Supported CPU Technologies Cool n Quiet Technology
Chipset NVIDIA nForce 630a
Number of Memory Slot(s) 2
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-6400 (DDR3-800)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16GB
Expansion Slots PCI-E x1
 PCI-E x16
Expansion Slots Details
  • 1 x PCI Express x16 slot
  • 1 x PCI slot
    		•
    Storage Controller SATA 3.0 Gbps
    On-Board Video Controller NVIDIA GeForce 7025
    Audio Controller VIA VT1705
    Network Ethernet
    Connectors/Ports 24-pin ATX Power Connector
     Audio-In
     Audio-Out
     Chassis Fan Connector
     COM
     CPU Fan Connector
     PS/2 Keyboard
     PS/2 Mouse
     RJ-45
     USB 2.0
    Connectors/Ports Details Connectors
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
  • 1 x ATA133 IDE connector (supports 2 x IDE devices)
  • 1 x Print Port header
  • 1 x COM port header
  • CPU/Chassis FAN connector
  • 24 pin ATX power connector
  • 4 pin 12V power connector
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x VGA Port
  • 4 x Ready-to-Use USB 2.0 Ports
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Line in / Front Speaker / Microphone
    		•
    Request for Quote:  N68-VS3-FX

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no N68-VS3-FX. Or Request a Quote below:



    General Information

  • N68-VS3-FX ASRock Socket AM3+ AMD Phenom II X6/ X4/ X3/ X2/ AMD Athlon II X4/ X3/ X2 AMD Sempron Processors Support DDR3 2x DIMM 4x SATA2 3.0Gb/s Micro-ATX Motherboard (Refurbished)
