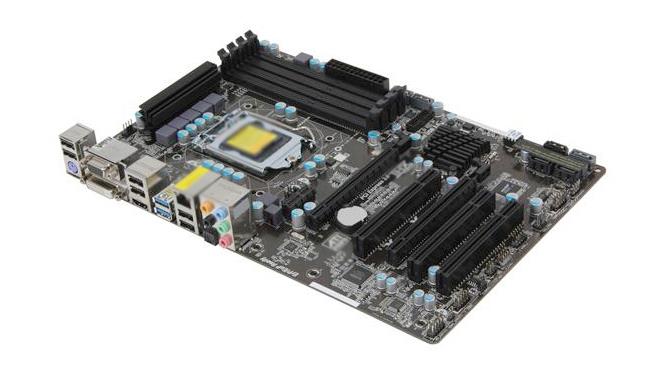

H77-PRO4/MVP ASRock H77 PRO4/MVP Socket LGA 1155 Intel H77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Xeon / Pentium / Celeron Processors Support DDR3 4x DIMM 2x SATA 3.0Gb/s ATX Motherboard (Refurbished)
H77-PRO4/MVP ASRock H77 PRO4/MVP Socket LGA 1155 Intel H77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Xeon / Pentium / Celeron Processors Support DDR3 4x DIMM 2x SATA 3.0Gb/s ATX Motherboard (Refurbished)

H77-PRO4/MVP ASRock H77 PRO4/MVP Socket LGA 1155 Intel H77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Xeon / Pentium / Celeron Processors Support DDR3 4x DIMM 2x SATA 3.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

H77-PRO4/MVP

Icon Global Part Number (GPN):

1472045975

$335.76 $746.13 You Save: $410.37 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of H77-PRO4/MVP? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for H77-PRO4/MVP

Model
Manufacturer ASRock
Manufacturer Part # H77-PRO4/MVP
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1155
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
 Intel Xeon Processor
Chipset Intel H77 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
 PCI-E 3.0 x16
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Audio-In
 COM
 DVI-D
 HDMI
 PS/2 Keyboard
 RJ-45
 TPM Header
 USB 2.0
 USB 3.1
Connectors/Ports Details Connector
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
  • 4 x SATA3 6.0 Gb/s connectors
  • 1 x IR header
  • 1 x CIR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x Power LED header
  • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 1 x Power Fan connector (3-pin)
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

    • Rear Panel I/O
  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 6 x Ready-to-Use USB 2.0 Ports
  • 2 x Ready-to-Use USB 3.1 Gen1 Ports
  • 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  H77-PRO4/MVP

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no H77-PRO4/MVP. Or Request a Quote below:



    General Information

  • H77-PRO4/MVP ASRock H77 PRO4/MVP Socket LGA 1155 Intel H77 Chipset 3rd/2nd Generation Core i7 / i5 / i3 / Xeon / Pentium / Celeron Processors Support DDR3 4x DIMM 2x SATA 3.0Gb/s ATX Motherboard (Refurbished)
