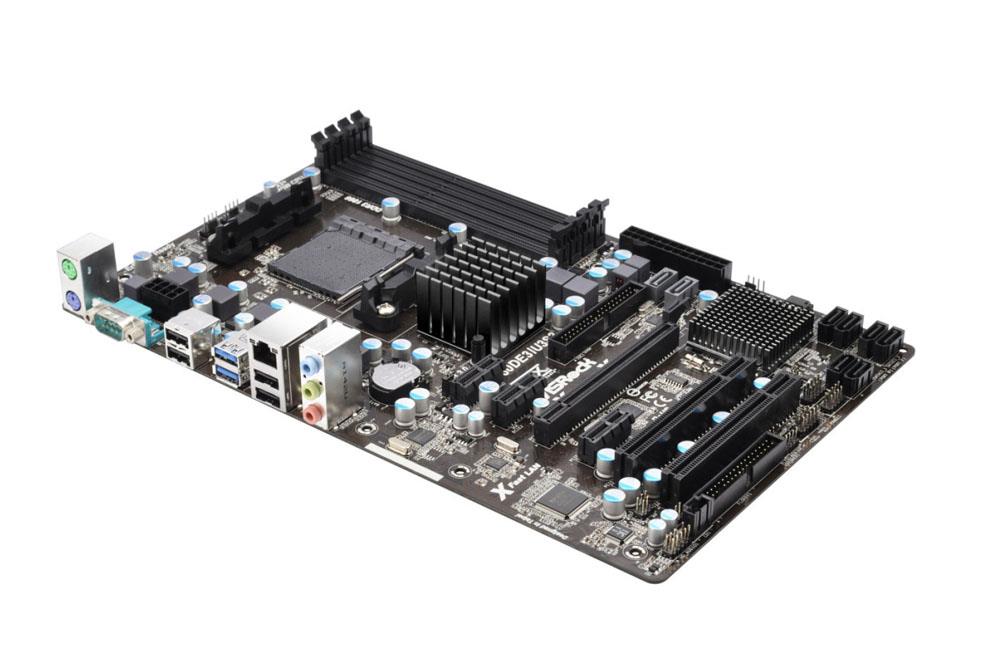

970DE3/U3S3 ASRock Socket AM3 AMD 770 + SB710 Chipset AMD Phenom II X6/ Phenom II X4/ Phenom II X3/ Phenom II X2/ AMD Athlon II X4/ Athlon II X3/ Athlon II X2/ AMD Sempron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
970DE3/U3S3 ASRock Socket AM3 AMD 770 + SB710 Chipset AMD Phenom II X6/ Phenom II X4/ Phenom II X3/ Phenom II X2/ AMD Athlon II X4/ Athlon II X3/ Athlon II X2/ AMD Sempron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

970DE3/U3S3 ASRock Socket AM3 AMD 770 + SB710 Chipset AMD Phenom II X6/ Phenom II X4/ Phenom II X3/ Phenom II X2/ AMD Athlon II X4/ Athlon II X3/ Athlon II X2/ AMD Sempron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

970DE3/U3S3

Icon Global Part Number (GPN):

1471849156

$317.32 $705.17 You Save: $387.85 (55% Spring Discount)
Availability:In Stock
Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Looking for a large quantity of 970DE3/U3S3? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

View Related Accessories Upgrade

Technical Specifications for 970DE3/U3S3

Model
Manufacturer ASRock
Manufacturer Part # 970DE3/U3S3
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type Socket AM3
Supported CPU(s) AMD Phenom II X3 Processor
 AMD Phenom II X4 Processor
 AMD Sempron Processor
Chipset AMD 770
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-14900 (DDR3-1866)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
Storage Controller SATA 3.0 Gbps
 SATA 6.0 Gbps
Audio Controller Realtek ALC662
Network Gigabit Ethernet
Connectors/Ports Audio-In
 Audio-Out
 COM
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 TPM Header
 VGA
Connectors/Ports Details Connector
  • 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions
  • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
  • 1 x ATA133 IDE connector (supports 2 x IDE devices)
  • 1 x Floppy connector
  • 1 x IR header
  • 1 x HDMI_SPDIF header
  • 1 x Power LED header
  • CPU/Chassis/Power FAN connector
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • CD in header
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Serial Port: COM1
  • 4 x USB 2.0 Ports
  • 2 x USB 3.1 Gen1 Ports (ASMedia ASM1042)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Line in / Front Speaker / Microphone
    		•
    Request for Quote:  970DE3/U3S3

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 970DE3/U3S3. Or Request a Quote below:



    General Information

  • 970DE3/U3S3 ASRock Socket AM3 AMD 770 + SB710 Chipset AMD Phenom II X6/ Phenom II X4/ Phenom II X3/ Phenom II X2/ AMD Athlon II X4/ Athlon II X3/ Athlon II X2/ AMD Sempron Processors Support DDR3 4x DIMM 2x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
