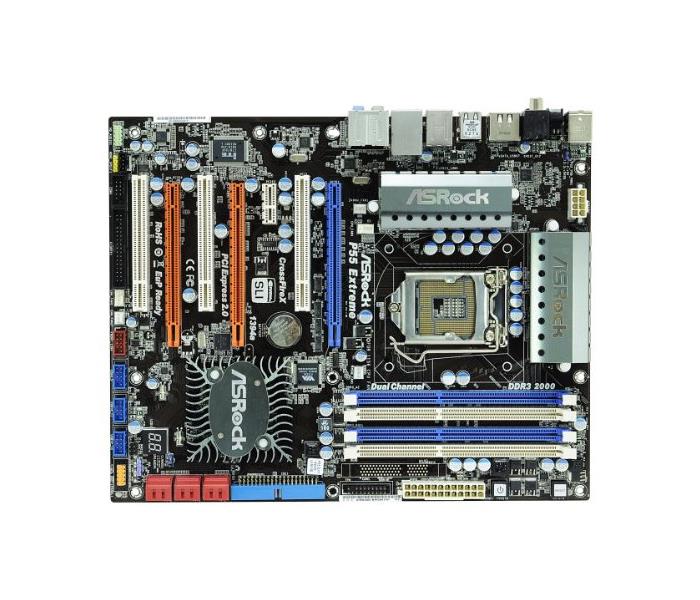

90-MXGBA0-A0UAYZ ASRock P55 Extreme Socket LGA 1156 Intel P55 Chipset Core i7 / i5 / i3 / Pentium G6950 Processors Support DDR3 4x DIMM 6x SATA2 3.0Gb/s ATX Motherboard (Refurbished)
90-MXGBA0-A0UAYZ ASRock P55 Extreme Socket LGA 1156 Intel P55 Chipset Core i7 / i5 / i3 / Pentium G6950 Processors Support DDR3 4x DIMM 6x SATA2 3.0Gb/s ATX Motherboard (Refurbished)

90-MXGBA0-A0UAYZ ASRock P55 Extreme Socket LGA 1156 Intel P55 Chipset Core i7 / i5 / i3 / Pentium G6950 Processors Support DDR3 4x DIMM 6x SATA2 3.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MXGBA0-A0UAYZ

$232.12 $331.60 You Save: $99.48 (30% Spring Discount)
Availability:Available for Order

Looking for a large quantity of 90-MXGBA0-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXGBA0-A0UAYZ

Model
Manufacturer ASRock
Manufacturer Part # 90-MXGBA0-A0UAYZ
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1156
Supported CPU(s) Intel Celeron Processor
 Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Supported CPU Technologies 64-bit
 Demand Based Switching
 Execute Disable Bit
 Idle States
 Intel Virtualization Technology
Chipset Intel P55 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-14900 (DDR3-1866)
 PC3-21300 (DDR3-2666)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
Storage Controller SATA 3.0 Gbps
Audio Controller Realtek ALC890
Network Gigabit Ethernet
Connectors/Ports 24-pin ATX Power Connector
 8-pin 12V Power Connector
 Audio-In
 Audio-Out
 Chassis Fan Connector
 COM
 CPU Fan Connector
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 2.0
Connectors/Ports Details Connector
  • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and Hot Plug functions
  • 1 x ATA133 IDE connector (supports 2 x IDE devices)
  • 1 x Floppy connector
  • 1 x IR header
  • 1 x COM port header
  • 1 x HDMI_SPDIF header
  • 1 x IEEE 1394 header
  • 1 x TPM header
  • CPU/Chassis/Power FAN connector
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • CD in header
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)

    • Rear Panel I/O
  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Coaxial SPDIF Out Port
  • 1 x Optical SPDIF Out Port
  • 7 x Ready-to-Use USB 2.0 Ports
  • 1 x Powered eSATA2/USB Connector
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • 1 x IEEE 1394 Port
  • 1 x Clear CMOS Switch with LED
  • HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    		•
    Request for Quote:  90-MXGBA0-A0UAYZ

    Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXGBA0-A0UAYZ. Or Request a Quote below:



    General Information

  • 90-MXGBA0-A0UAYZ ASRock P55 Extreme Socket LGA 1156 Intel P55 Chipset Core i7 / i5 / i3 / Pentium G6950 Processors Support DDR3 4x DIMM 6x SATA2 3.0Gb/s ATX Motherboard (Refurbished)
