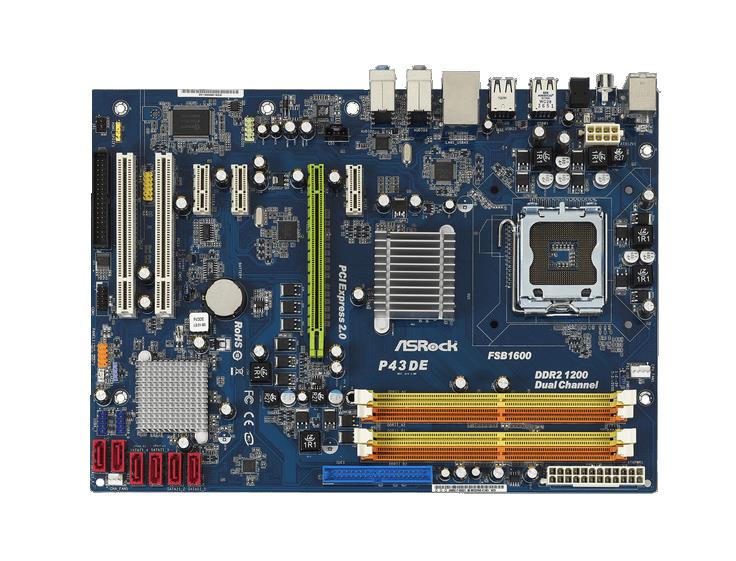

90-MXG9W0-A0UAYZ ASRock P43DE Socket LGA 775 Intel P43 + ICH10 Chipset Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron Processors Support DDR2 4x DIMM 6x SATA2 3.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MXG9W0-A0UAYZ

$181.50 $259.29 You Save: $77.79 (30% Spring Discount)

Availability:Available for Order

Quantity

Looking for a large quantity of 90-MXG9W0-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXG9W0-A0UAYZ

Model
Manufacturer	ASRock
Manufacturer Part #	90-MXG9W0-A0UAYZ
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 775
Supported CPU(s)	Intel Celeron Dual-Core Processor Intel Celeron Processor Intel Core2 Duo Desktop Processor Intel Core2 Extreme Processor Intel Core2 Quad Processor Intel Pentium Dual-Core Processor
Supported CPU Technologies	Hyper-Threading Technology
Chipset	Intel P43 Express
South Bridge Chipset	Intel ICH10
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC2-5400 (DDR2-667) PC2-6400 (DDR2-800) PC2-8600 (DDR2-1066) PC2-9600 (DDR2-1200)
Maximum Installed Memory	16 GB
Expansion Slots	PCI PCI-E 2.0 x1 PCI-E 2.0 x16
Storage Controller	SATA 3.0 Gbps
Audio Controller	VIA VT1708S
Network	Gigabit Ethernet
Connectors/Ports	24-pin ATX Power Connector 8-pin 12V Power Connector Audio-In Chassis Fan Connector COM CPU Fan Connector HDMI Microphone PS/2 Mouse RJ-45 USB 2.0
Connectors/Ports Details	Connector 6 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions 1 x ATA133 IDE connector (supports 2 x IDE devices) 1 x Floppy connector 1 x IR header 1 x COM port header 1 x HDMI_SPDIF header CPU/Chassis FAN connector 24 pin ATX power connector 8 pin 12V power connector CD in header Front panel audio connector 2 x USB 2.0 headers (support 4 USB 2.0 ports) 1 x USB/WiFi header Rear Panel I/O 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Coaxial SPDIF Out Port 1 x Optical SPDIF Out Port 6 x Ready-to-Use USB 2.0 Ports 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Request for Quote: 90-MXG9W0-A0UAYZ

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXG9W0-A0UAYZ. Or Request a Quote below:

Quantity

How soon you need it?

General Information

90-MXG9W0-A0UAYZ ASRock P43DE Socket LGA 775 Intel P43 + ICH10 Chipset Core 2 Extreme/ Core 2 Quad/ Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron Processors Support DDR2 4x DIMM 6x SATA2 3.0Gb/s ATX Motherboard (Refurbished)
