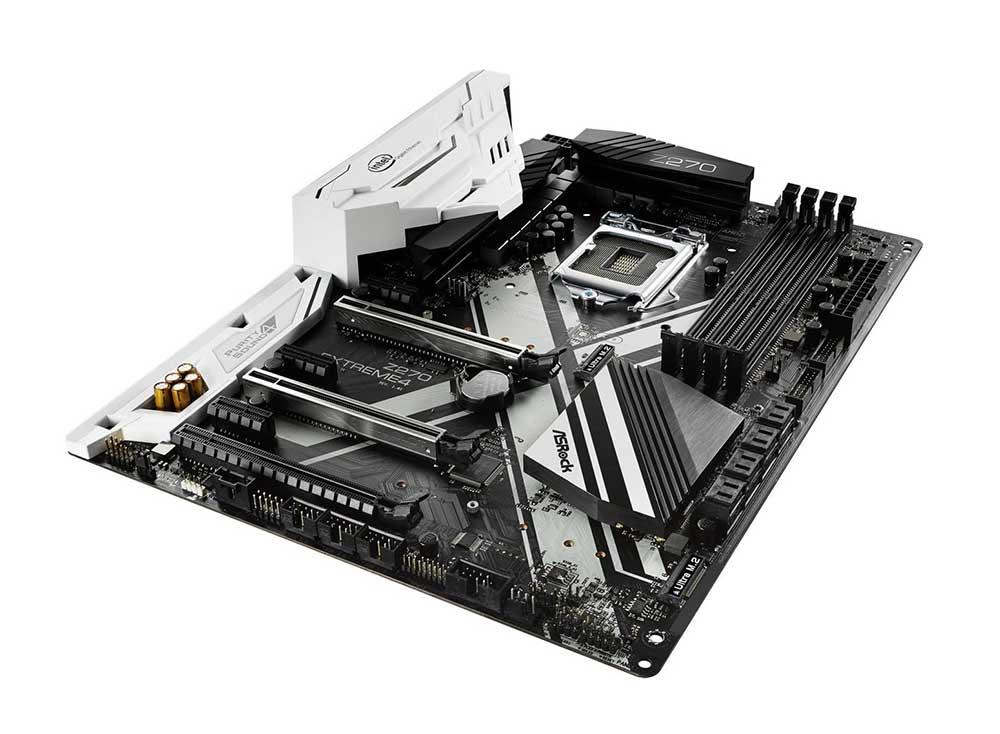

90-MXB3N0-A0UAYZ ASRock Z270 Extreme4 Socket LGA 1151 Intel Z270 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)

Mfg Part No:

90-MXB3N0-A0UAYZ

Global Part Number (GPN):

1499365946

$191.88 $426.41 You Save: $234.53 (55% Father's Day Discount)

Availability:In Stock

Order with Confidence

Need to confirm compatibility or quantity? Our team is here to help.

1-800-821-3354 | [email protected] | Live Chat

Supporting IT Teams Since 1986

Quantity

Looking for a large quantity of 90-MXB3N0-A0UAYZ? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Technical Specifications for 90-MXB3N0-A0UAYZ

Model
Manufacturer	ASRock
Manufacturer Part #	90-MXB3N0-A0UAYZ
Performance
Product Type	System Board
Form Factor	ATX
CPU Socket Type	LGA 1151
Supported CPU(s)	Intel Celeron Processor Intel Core i3 Processor Intel Core i5 Processor Intel Core i7 Processor Intel Pentium Processor
Chipset	Intel Z270
Number of Memory Slot(s)	4
Number of Memory Channel(s)	2
Supported Memory Standard(s)	PC4-17000 (DDR4-2133) PC4-19200 (DDR4-2400) PC4-23466 (DDR4-2933) PC4-25600 (DDR4-3200)
Maximum Installed Memory	64 GB
Expansion Slots	PCI-E 3.0 x16
Storage Controller	SATA 6.0 Gbps
Audio Controller	Realtek ALC1220
Network	Gigabit Ethernet
Connectors/Ports	Audio-In Audio-Out Chassis Fan Connector COM CPU Fan Connector RJ-45 TPM Header USB 3.0
Connectors/Ports Details	Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x AURA RGB LED Header 1 x CPU Fan Connector (4-pin) 1 x CPU Optional/Water Pump Fan Connector (4-pin) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 1 x Thunderbolt™ AIC Connector (5-pin) 1 x Thunderbolt™ AIC Connector (10-pin) 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel® Z270) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel® Z270) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM2142) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM2142) (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB 3.1 Gen1 Ports (Intel® Z270) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Request for Quote: 90-MXB3N0-A0UAYZ

Please call at (800) 821-3354 and one of our representative will be happy to assist you with part no 90-MXB3N0-A0UAYZ. Or Request a Quote below:

Quantity

How soon you need it?

General Information

90-MXB3N0-A0UAYZ ASRock Z270 Extreme4 Socket LGA 1151 Intel Z270 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
