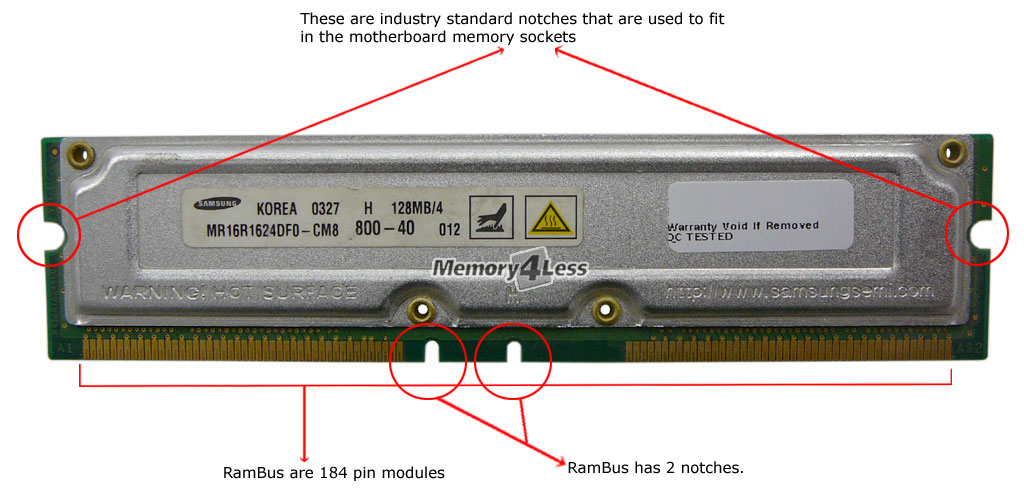

Memory > Rdram - Rambus Memory > Samsung Electronics Co Ltd MR16R1624DF0-CM8 - Samsung Original Rambus MR16R1624DF0-CM8 128MB 16bit 800MHz 40NS Non-ECC 184 Pin Memory

General

Technical Specs

Related Accessories

If you need a specific part number listed above, please inform us in your order, or you can call us at 1-800-821-3354.
Rambus modules have mostly been manufactured by reputable manufacturers like Samsung, Elpida, Infineon, NEC, Kingston and Toshiba, and will ship depending on availability.
These modules must be purchased and installed in pairs.
Please consult your system manual for compatibility.
Picture is for display purposes, actual part and manufacturer may vary.
This item carries a one year exchange warranty.
Please note that Apple, Compaq, Cisco, Dell, IBM, HP, Maxtor, Fujitsu, Seagate, Sun or any item that is not a 3D memory product once processed can not be cancelled or returned for credit. There may be a restocking fee of minimum $ 25 or upto 25% on certain products which differs from product to product.
This item can be shipped in 24 hours or depending on the availability. Please confirm with our customer service at 1-800-821-3354 if you need the item to be shipped the same day.
Please note that most of the major manufacturers (e.g. HP, IBM, Compaq, Dell) part numbers have established corresponding spare part numbers (spare P/N#), or field replacement part numbers (fru #'s) for their items. When you receive the part it may display this Spare P/N# or FRU # on it. You can easily reference this part number as a valid replacement part for your ordered item at any of the manufacturer websites. If you need any assistance in this regard please call our Sales Department at 1-800-821-3354 Option 1.
This part # has a 30 days limited DOA exchange warranty for replacement only with the same part. Some drives may have 90 days warranty which you can confirm. The product may have other warranties like manufacturer, service, or extended warranty that you can confirm with the sales department.
All hardware sold are bulk equipment with no drivers and cd included. If you need a driver or CD installation for a particular item please call to confirm that we have it.
Our online shipping calculator is based to calculate shipping for memory, hard drive and other items that are less than 5 lbs. It may not calculate the correct shipping cost of items that are more than 5 lbs. Please do call us to confirm before you place the order for items that are heavier in shipping. If you do place the order by mistake you may receive an email or call from our customer service department with the exact shipping charges. Some of the items that come in this category are servers, racks, motherboards.

Last Updated: 4/25/2008

Description:
The Rambus RIMM module is a general purpose high- performance memory module suitable for use in a broad range of applications including computer memory, personal computers, workstations, and other applications where high bandwidth and low latency are required. The Rambus RIMM module consists of 128/144Mb Direct Rambus DRAM devices. These are extremely high-speed CMOS DRAMs organized as 16M words by 16 or 18 bits. The use of Rambus Signaling Level (RSL) technology permits 600 MHz or 800 MHz transfer rates while using conventional system and board design technologies. RDRAM devices are capable of sustained data transfers at 1.25 ns per two bytes (10ns per 16 bytes). The RDRAM architecture enables the highest sustained bandwidth for multiple, simultaneous, randomly addressed, memory transactions. The separate control and data buses with independent row and column control yield over 95% bus efficiency. The RDRAMs 32-bank architecture supports up to four simultaneous transactions per device.

Features

High speed 800MHz RDRAM storage
184 edge connector pads with 1mm pad spacing
Module PCB size : 133.35mm x 31.75mm x 1.27mm
(5.25" x 1.25" x 0.05") - 256Mb base RIMM
Module PCB size : 133.35mm x 34.93mm x 1.27mm
(5.25" x 1.375" x 0.05") - 288Mb base RIMM
Each RDRAM has 32 banks, for a total of 512, 256, 128,
64 banks on each 512/576MB, 256/288MB, 128/144MB, 64/72MB module respectively
Gold plated edge connector pad contacts
Serial Presence Detect(SPD) support
Operates from a 2.5 volt supply (?%)
Powerdown self refresh modes
Separate Row and Column buses for higher efficiency
WBGA package (92 balls)

Part Number Density(MB) Organization Comp.
Composition Voltage(V) Refresh Speed(MHz)/
tRAC(ns) #of
Pin Production
Status Comments

MR16R1624DF0 ( - ) 128 64Mx16 256M 5thx4pcs 2.5 16K/32ms 800-40(45), 1066-32P(*Note1) 184 Mass Production SS
