Last Updated: 4/25/2008
|
|
Description:
Description :

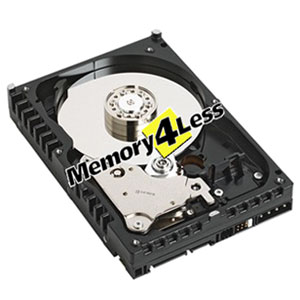

Western Digital offers WD Caviar SE Serial ATA (SATA) hard drives with features and capacities that are ideal for next-generation computers and low-end enterprise storage. Users benefit from a data transfer rate performance roadmap that begins with 150 MB/s and extends to 600 MB/s, as well as improved cabling that enables greater system design flexibility. Designers of enterprise storage systems and servers are increasingly using desktop-class, large-capacity SATA hard drives because of the advantages that the SATA interface provides.
Features and Benefits :
Bare Drive
8 MB cache buffer - fast data transfer from a cache four times larger than the industry-standard 2 MB size.
7200 RPM - high-performance rotational speed for high-capacity hard drives.
Data Lifeguard Tool - software utility that works in conjunction with the embedded Data Lifeguard features (including shock protection, an environmental protection system, and embedded error detection and repair features) to make hard drive management diagnostics and repair simple and worry-free.
SecureConnect - provides a 500 percent stronger cable-to-drive connection than first-generation SATA hard drives and cables; ensures backward compatibility with legacy SATA cables and backplanes.
FlexPower - connector technology that accepts power from both industry-standard and new SATA power supplies.
Point-to-point bus configuration - utilizes the full bandwidth of each drive interface in a networked environment.
Hot plug support - ability to swap out a hard drive without having to power down the system or reboot promotes system design flexibility, data availability, and serviceability.
Backplane compatibility - promotes expandability and flexibility in system architecture.
Longer, narrower cable - prevents incorrect mating and bent pins, providing greater reliability and reduced service calls.
Specifications Back to Top
Performance Specifications Data Transfer Rate:
Buffer to Host: 150 MB/s 2
Buffer to Disk: 748 Mbits/s max
Average Read Seek: 8.9 ms (average)
Track-to-Track Seek 3: 2.0 ms (average)
Full Stroke Read Seek 3: 21 ms (average)
Average Latency: 4.2 ms
Rotational Speed: 7200 RPM
Read Cache: Adaptive
Write Cache: Yes
Buffer: 8 MB
Drive Ready Time: 9.0 sec (average)
Start/Stop Cycles: 50,000 minimum
LBA Support: Yes
Error Rate (non-recoverable): <1 in 1014 bits read
Physical Specifications Formatted Capacity 1 : 250,059 MB
Interface: 1.5 Gb/s Interface (Serial ATA 1.0)
Bytes Per Sector (STD): 512
User Sectors Per Drive: 488,397,168
Dedicated Landing Zone: Yes
Actuator Latch/Auto Park: Yes
Physical Dimensions Height:
English: 1.028 inches max
Metric: 25.4 mm max
Length:
English: 5.787 inches max
Metric: 147.0 mm max
Width:
English: 4.00 inches +/-0.010 inch
Metric: 101.6 mm +/-0.25 mm
Weight:
English: 1.32 pounds +/-0.13 pounds
Metric: 0.60 kg +/-0.06 kg
Environmental Specifications 5 Shock:
Operating (2 ms) 30G (write), 65G (read)
Non-operating (2 ms)6 250G
Vibration:
Operating - Random: 0.004 g2/Hz (10 to 300 Hz)
Operating - Linear: 20-300 Hz, 0.75G (0 to peak)
Non-operating - Linear: 5-20 Hz, 0.195 inches (dbl amp)
20-500 Hz, 4.0G (0 to peak)
Operating Temperature and Humidity:
Temperature 5oC to 55oC
Humidity 5-95% RH non-condensing
Thermal Gradient 20oC/hour (max)
Non-Operating Temperature and Humidity:
Temperature -40oC to 65oC
Humidity 5-95% RH non-condensing
Thermal Gradient 30oC/hour
Acoustics (average):
Idle Mode 7 34 dBA
Seek Mode 0 7 36 dBA
Seek Mode 3 7 35 dBA
Specifications subject to change without notice.
1 Western Digital defines a megabyte (MB) as 1,000,000 bytes, and a gigabyte (GB) as 1,000,000,000 bytes.
2 Effective maximum transfer rate running Serial 1.0.
3 On reads and writes.
4 20% duty cycle.
5 No non-recoverable errors during operating tests or after non-operating tests.
6 Half sine wave measured in 2 ms duration, measured without isolation.
7 Sound power level.
Warranty :
Warranty Length: Three years manufacturer warranty beginning from the manufacturing date.
Coverage: Covers repair or replacement of the product.
Provider: Western Digital.
Contact: Western Digital Customer Service at (949) 672-7000
Technical Support: Western Digital Technical Support at 1-800-275-4932 for EIDE hard drives, 1-888-932-7247 for SCSI hard drives.
Service Location: Western Digital provides warranty service at a mail-in location.
Service Time: Please allow 2-3 weeks for warranty service.
|
