Description:
Description :

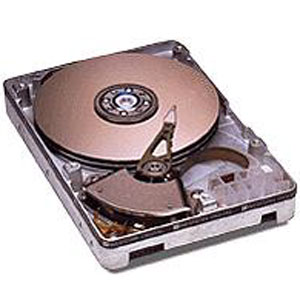

The latest generation of Western Digitals award-winning WD Caviar Enhanced IDE (EIDE) hard drive family features new firmware innovations to achieve 60GB per platter. Spinning up to 7200RPM and offering capacities as large as 200GB, the latest WD Caviar hard drives combine the high performance and increased areal density required by todays capacity-hungry users.
Data Protection Enhancements
To protect your data, WD developed Data LifeguardTM, an expanded set of data protection tools that includes shock protection, an enviromental protection system, and embedded error detection and repair features that automatically find, isolate, and repair problem areas that may develop over the extended use of the hard drive. With these enhanced data reliability features, the drive can perform more accurate monitoring and error repair and deliver exceptional data security.
Data Lifeguard ToolsTM is a set of software utilities that work in conjunction with the embedded Data Lifeguard features to make hard drive installation, drive management diagnositcs, and repair simple and worry-free.
Shock GuardTM provides outstanding improvements in shock and vibration protection for the newest WD Caviar drives. Shock Guard allows instantaneous data protection at high shock values to achieve leading shock specifications.
Important: Use Data Lifeguard Tools 10.0 or later installation software to access the full capacity of your hard drive. Hard drives larger than 137GB require a controller card to utilize full drive capactiy.
Features and Benefits :
Bare Drive (Software portion of Data LifeGuard is not included, however you may download it for free at Western Digitals website. Please click here.)
Rotational Speed: 7200 RPM
Capacities: 180 GB
Interface: Ultra ATA/100
Average Read Seek Time: 8.9 ms
Buffer Size: 2 MB
Solving the 137 GB capacity limits
Data Lifeguard:
Data Lifeguard Features: WDs exclusive hardware, software and services designed to protect your data.
Embedded error detection and repair features that automatically detect, isolate and repair problem areas that may develop over the extended use of the hard drive.
S.M.A.R.T. monitors hard drive operation to predict errors before data loss occurs.
Protective head parking is an exclusive new feature that adds another layer of protection to auto park by safely parking the heads even if other system components lose functionality.
Environmental protection filters offer added protection to the inside of the drive from humidity, temperature and contamination.
Specifications Back to Top
Performance Rotational Speed: 7,200 RPM (nominal)
Buffer Size: 2 MB
Buffer To Disk: 736.0 Mbits/s (Max)
Read Seek Time (Average): 8.9 ms
Write Seek Time (Average): 10.9 ms (average)
Track-To-Track Seek Time: 2.0 ms (average)
Full Stroke Seek: 21.0 ms (average)
Average Latency: 4.2 ms (nominal)
Mode 5 Ultra ATA: 100.0 MB/s
Mode 4 Ultra ATA: 66.6 MB/s
Mode 2 Ultra ATA: 33.3 MB/s
Mode 4 PIO: 16.6 MB/s
Mode 2 multi-word DMA: 16.6 MB/s
Configuration Cylinders: 16,383
Number of Heads (Logical): 16
Number of Heads (Physical): 6
Sectors Per Track: 63
Formatted Capacity: 180,045 MB
Interface: EIDE
Actuator Type: Rotary Voice Coil
Number of Platters: 3
Bytes Per Sector: 512
User Sectors Per Drive: 351,651,888
Servo Type: Embedded
Dimension & Enviromental Height (English): 1.028 Inches (Max)
Length (English): 5.787 Inches (Max)
Width (English): 4.00 Inches (+/- 0.010 inch)
Weight (English): 1.32 Pounds (+/- 0.14 pounds)
Operating Shock (Read): 20G, 2 ms
Non-operating Shock: 200G, 2 ms
Idle Mode: 35 dBA (average)
Seek Mode 0: 37 dBA (average)
Seek Mode 3: 36 dBA (average)
Specifications subject to change without notice.
Warranty :
Warranty Length: One year manufacturers warranty.
Coverage: Covers repair or replacement of the product.
Provider: Western Digital.
Contact: Western Digital Customer Service at (949) 672-7000
Technical Support: Western Digital Technical Support at 1-800-275-4932 for EIDE hard drives, 1-888-932-7247 for SCSI hard drives.
Service Location: Western Digital provides warranty service at a mail-in location.
Service Time: Please allow 2-3 weeks for warranty service.
|
