Description:
Description :
The RIMM™ module is a general purpose high-performance memory module suitable for use in a broad range of applications including computer memory, personal computers, workstations, and other applications where high bandwidth and low latency are required.
The RIMM module consists of 512/576MB Direct RDRAM devices. These are extremely high-speed CMOS DRAMs organized as 16M words by 16 bits. The use of Rambus Signaling Level (RSL) technology permits up to 1066 MHz transfer rates while using conventional system and board design technologies. RDRAM devices are capable of sustained data transfers up to at 0.94 ns per two bytes (7.5ns per 16 bytes).
The RDRAM architecture enables the highest sustained bandwidth for multiple, simultaneous, randomly addressed, memory transactions. The separate control and data buses with independent row and column control yield over 95% bus efficiency. The RDRAMs 32-bank architecture supports up to four simultaneous transactions per device.
Features and Benefits :
ECC
High speed up to 1066 MHz RDRAM storage

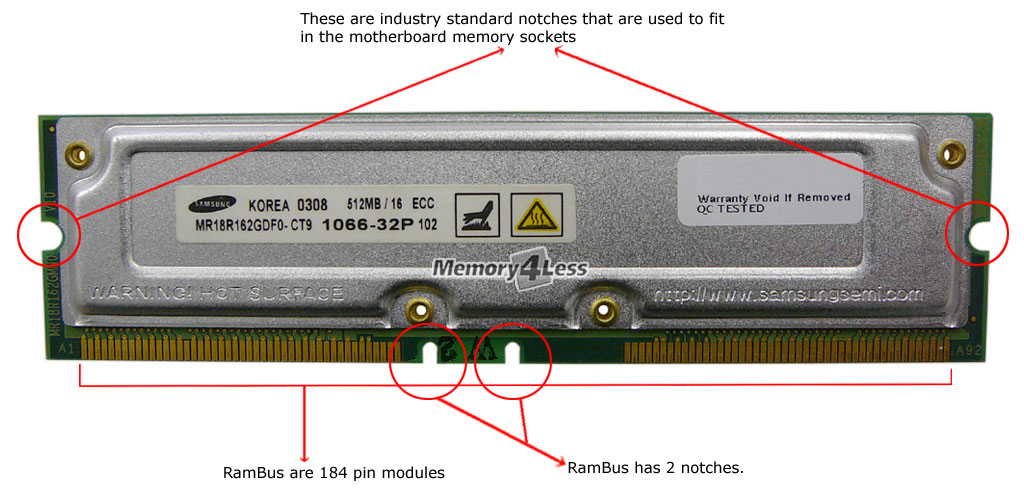

184 edge connector pads with 1mm pad spacing
Module PCB size : 133.35mm x 34.93mm x 1.27mm (5.25¡± x 1.375¡± x 0.05¡±) - 512 and 576MB base PC1066 RIMM
Each RDRAM has 32 banks for a total of 512 banks on each 512/576MB module respectively
Gold plated edge connector pad contacts
Serial Presence Detect(SPD) support
Operates from a 2.5 volt supply (±5%)
Powerdown self refresh modes
Separate Row and Column buses for higher efficiency
WBGA package (92 balls)
Specifications subject to change without notice.
|
| Memory Type | Rambus |
| Capacity | 512MB |
| Pins | 184 Pin |
| Bus Type | PC-1066 |
| Error Correction | ECC |
| Memory Speed | 32 |
| Data Transfer Rate | 1066Mhz |
| Voltage | 3.3 |
|
|
|
|
